ANTENNE BASIS 108-136MHZ 2.15DBI N-CONNECTOR

Name: ANTENNE BASIS 108-136MHZ 2.15DBI N-CONNECTOR
SKU: SPO118-2
Price: 159.95 EUR
Availability: InStock

€ 159,95 € 132,19

Artikelnummer

SPO118-2

Sirio - SPO 118-2

Toon meer Toon minder

ArtikelnummerSPO118-2
MerkSIRIO

Aantal 3+ € 143,95 € 118,97

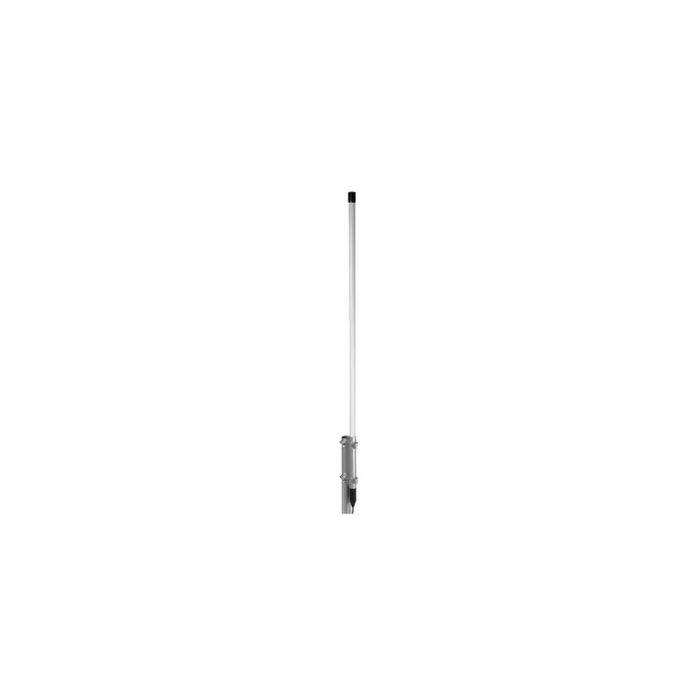

Wide band omnidirectional base station antenna suitable for VHF AIR band. The fiberglass protection radome and the anodized aluminium parts guarantee robustness and long life to all the SPO-antennas series. They are supplied with two strong extruded aluminium brackets and stainless steel hardware for a good installation on the mast.

Frequency range: RX: 108-136 MHz, TX 118-136 MHz

Electrical data

Electrical type: Dipole
Gain: 0 dBd - 2.15 dBi
VSWR: ≤ 1.5
Maximum continuous power: 100 Watts (CW)
Impedance: 50 Ohm
Polarization: Linear vertical
Radiation (H-plane): 360° Omnidirectional
Radiation (E-plane): Beamwidth @ -3dB = 78°
Radiation angle deg.: 0°

Mechanical data

Materials: Anodized aluminium, brass, stainless steel, fiberglass, EPDM rubber, copper
Mast Ø: 35 - 54 mm
Max wind resistance: 180 km/h
Height: 1700 mm
Weight: 1400 gram
Mounting type: On mast
Antenna connector: N-female
Operating temperature: -40°C to + 80°C
Wind Load at 150 km/h: 56 N
Wind Surface: 0.048 m²
