ANTENNE BASIS 0.5-1500MHZ ACTIEVE VERSTERKER 12-30DB

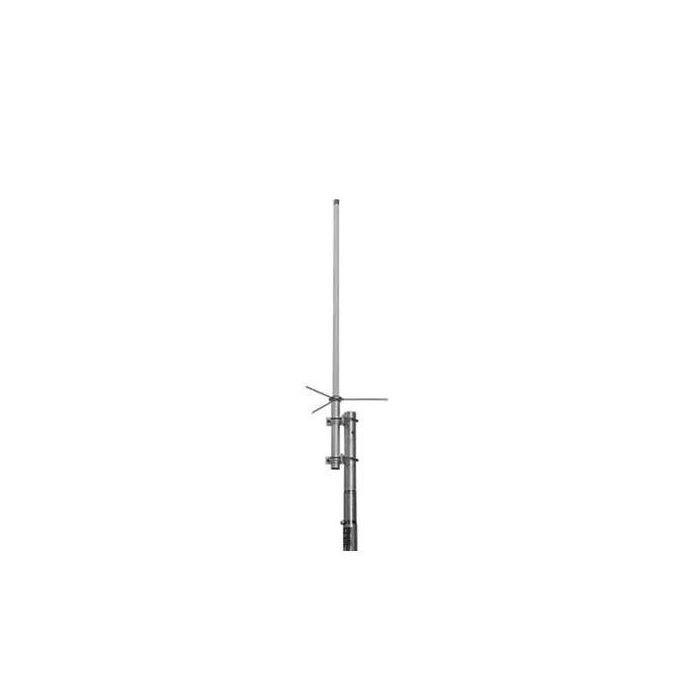

The Comet BR-200 is a wideband base receive active antenna for 0.5-1500 MHz.

The antenna gain is 3-7 dBi depending on frequency. The integrated amplifier provides 30 dB gain on HF and VHF, and 12 dB above 900 MHz.

A bias-tee unit is included to feed the pre-amp voltage up the coax line. The bias-tee requires 9-16 Volt, 100 mA.

The antenna is made out of fiberglass and aluminium.

• lectrical type: Active antenna
• Gain: 3-7 dBi (depending on frequency)
• Impedance: 50 Ohm
• Polarization: Linear vertical

• Materials: Fiberglass, Aluminium
• Height: 135 cm
• Weight: 1000 gram
• Antenna connector: UHF female
