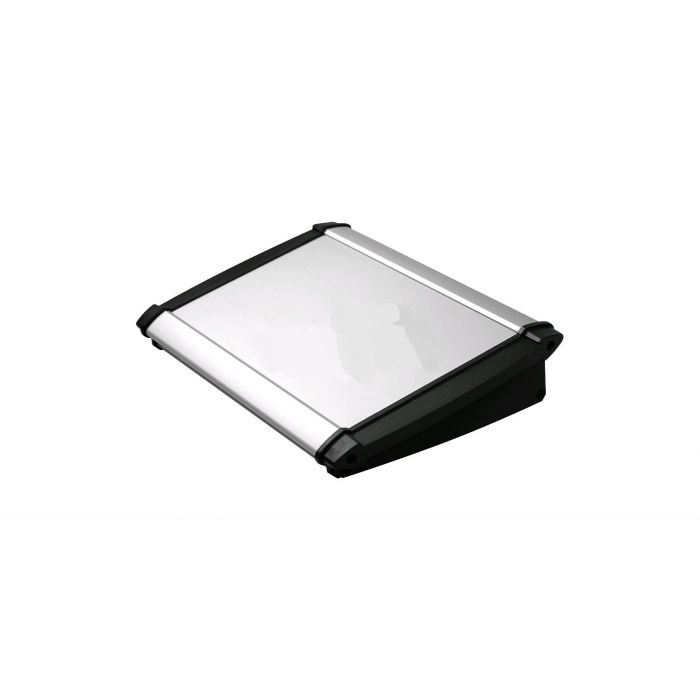

ALUMINIUM BEHUIZING 294X185X72MM
€ 93,94
€ 77,64
Artikelnummer
ATPH186-25
- ArtikelnummerATPH186-25
- MerkBOPLA
- Aantal 5+ € 84,54 € 69,87
Features
| • Console enclosure with divided profile allows easy assembly • Profile is closed with two designer caps in graphite grey • Profiles come with grooves and screw channels for circuit boards and mounting plates • Upper surface is recessed for membrane keypads |
 |
| Dimensions |
| Part Nr. | LP | BP | TP | LD | BD | TD |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| ATPH1850-150 | 150 | 181,2 | 53,2 | 194 | 185,2 | 57,2 |
| ATPH1850-200 | 200 | 181,2 | 53,2 | 244 | 185,2 | 57,2 |
| ATPH1850-250 | 250 | 181,2 | 53,2 | 294 | 185,2 | 57,2 |
| ATPH1865-200 | 200 | 181,2 | 68,2 | 244 | 185,2 | 72,2 |
| ATPH1865-250 | 250 | 181,2 | 68,2 | 294 | 185,2 | 72,2 |
| ATPH1865-300 | 300 | 181,2 | 68,2 | 344 | 185,2 | 72,2 |
| LP, BP, TP = Profile Dimensions, LD, BD, TD = Enclosure Dimensions incl. End Caps | ||||||
