ALUMINIUM BEHUIZING 160X86X51MM
€ 56,49
€ 46,69
Artikelnummer
14KHD1601
- Artikelnummer14KHD1601
- MerkHAMMOND
- Aantal 5+ € 50,84 € 42,02
| Features |

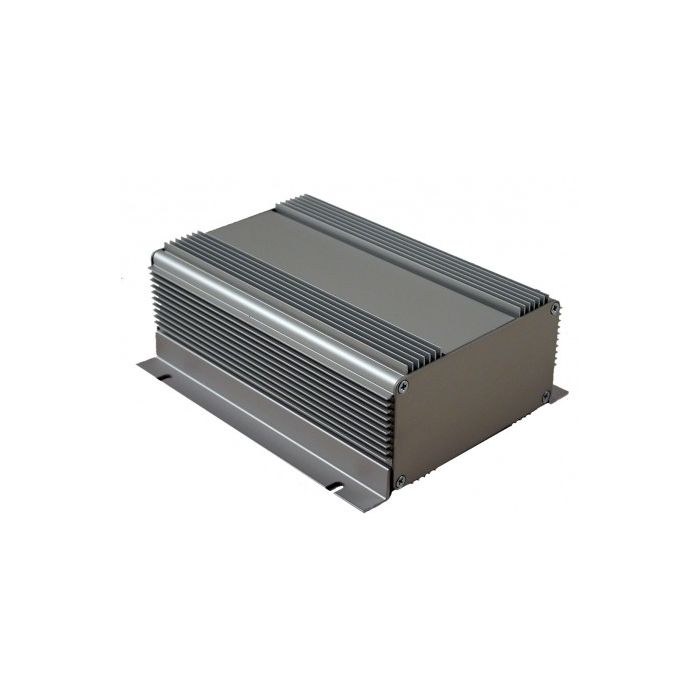

| • Two-part aluminium enclosures made of a pulverised extruded profile (clear or black anodized) with two aluminium end plates • Wall or shelf mounting with two removable flanges • For Standard Europe P.C. Boards • Easily removable ground plate |
 |
| Dimensions |
| Part No. | Length | Width | Height* |
| [mm] | [mm] | [mm] | |
| 1455KHD1201 | 120 | 86,02 | 51,02 |
| 1455KHD1201BK | 120 | 86,02 | 51,02 |
| 1455NHD1201 | 120 | 111 | 60,76 |
| 1455NHD1201BK | 120 | 111 | 60,76 |
| 1455KHD1601 | 160 | 86,02 | 51,02 |
| 1455KHD1601BK | 160 | 86,02 | 51,02 |
| 1455NHD1601 | 160 | 111 | 60,76 |
| 1455NHD1601BK | 160 | 111 | 60,76 |
| *Height with Lid | |||
|
|||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece Delivery contents: enclosure, 2 end plates, 2 flanges, assembly screws |
|
