CRT ALPHA

€ 79,94 € 66,07

Artikelnummer

ALPHA

CRT - Alpha

Toon meer Toon minder

ArtikelnummerALPHA
MerkCRT

Aantal 3+ € 75,94 € 62,76

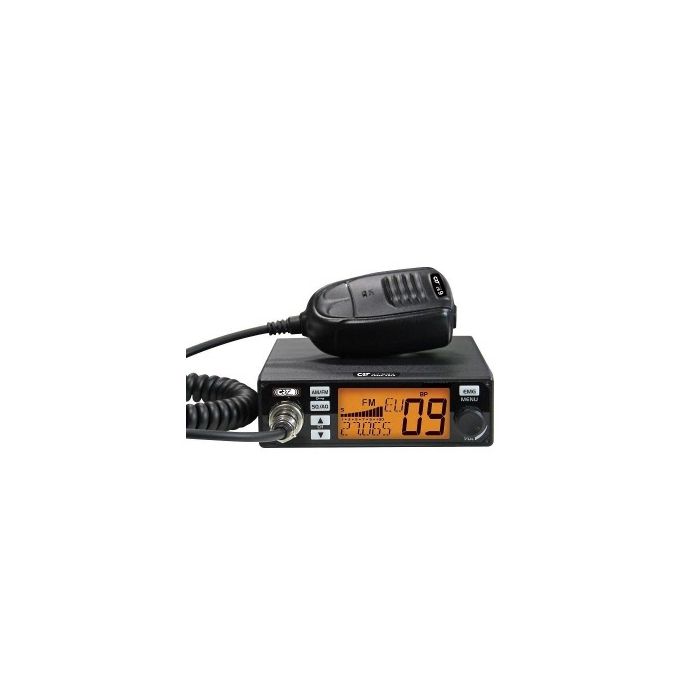

De CRT Alpha is een gloednieuwe CB-radio van CRT met groot 7 kleuren LCD-display. De Alpha is eenvoudig te bedienen, beschikt over de meest essentiële functies en is geschikt voor 12 en 24 Volt. De CB-radio wordt compleet geleverd inclusief montageset en sigarettenaanstekeradapter.

Frequentiebereik: 26,965 - 27,405 MHz

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 4 Watt
Channels: 40 AM / FM
Display type: LCD display
Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
VOX Function: Yes
Noise blanker: Yes
Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
Emergency channel: Yes
Keypad lock: Yes
Scan function: Yes
External speaker socket: Yes
S-meter: Yes
RF gain: Yes
Car socket connector: Yes
Roger Beep: Yes
CTCSS: Yes 38, decode and encode
DCS: Yes 104, digital and analog code to activate

Electrical data

Voltage: 13,8 Volt / 24 Volt /
Operating temperature: -20° to +55° C
Frequency tolerance: ± 5.0 ppm

Transmitter

Audio frequency response: 300 Hz - 3 kHz
Impedance: 50 Ohm
Drain: 13.8 Volt: 3.0 A max.

Receiver

AM sensitivity: Less than 1.0 µV for 10 dB
FM sensitivity: Less than 1.0 µV for 10 dB
Frequency response: 300 Hz - 3 kHz
Adjacent channel selectivity: 60 dB
Maximum audio power: 2 Watt
Internal speaker: 8 Ohm, round
Image rejection: 70 dB
IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
Squelch: Less than 1 µV,
Automatic Gain Control (AGC): Less than 10 dB change in audio, output for inputs from 10 to 50000 uV

Mechanical data

Length: 185 mm
Height: 38 mm
Width: 124 mm
Weight: 620 gram
Antenna connector: UHF (PL) female (SO-239)
Mike connector: 6 pin connector

Inside the box

Transceiver: 1 pcs
Microphone: 1 pcs
Fixing screws: 1 set
Mounting bracket: 1 pcs
Power lead: 1 pcs
User Manual: English, French
Fuse: 1 pcs
