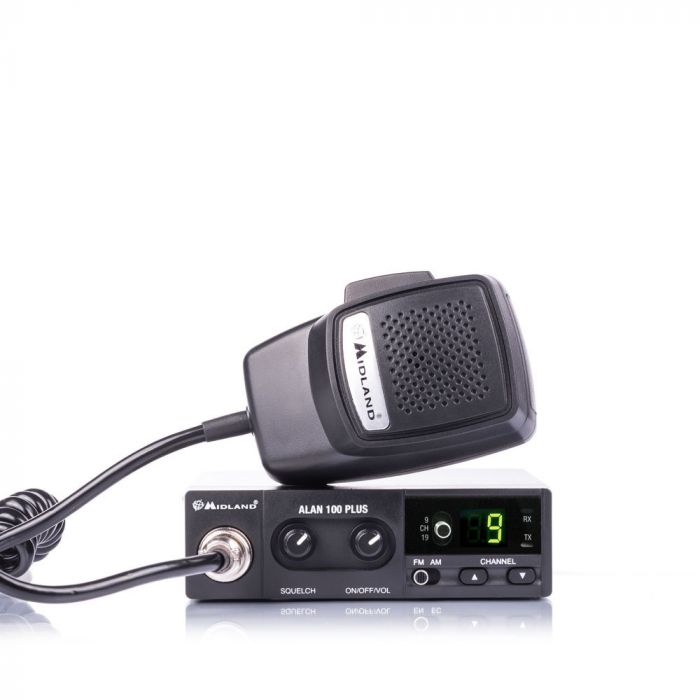

De Midland Alan 100 Plus B is een compacte CB-radio voor auto, caravan en vrachtwagen. De radio beschikt over de meest essentiële functies en is eenvoudig te gebruiken op 12 Volt.
Frequentiebereik: 26,965 - 27,405 MHz
Features
Modulation: AM / FM
Output power: 4 Watt
Channels: 40 AM / FM
Display type: LED display
Noise blanker: Yes
Squelch: Manual squelch
Hi/Lo power: Yes
External speaker socket: Yes
Electrical data
Voltage: 13,8 Volt
Frequency tolerance: 0.002%
Transmitter
Modulation AM: 80%
Modulation FM: 2.5 kHz
Drain: AM: 1.8 A / FM: 1.3 A max.
Receiver
AM sensitivity: 1.0 μV for 20 dB SINAD
FM sensitivity: 1.0 μV for 20 dB SINAD
Frequency response: 450 Hz - 2.5 kHz
Adjacent channel selectivity: 60 dB at 10 kHz / 70 dB at 20 kHz
Squelch sensitivity: Adjustable from 1.2 μV to 1mV
