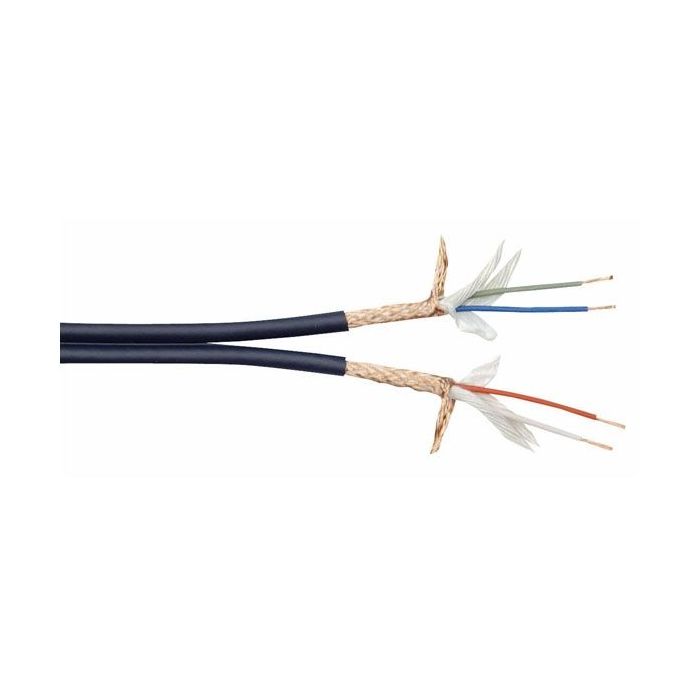

AFGESCHERMD 2X2X0.14MM2 PLAT BLAUW PER ADER AFGESCHERMD

Conductor drains Ø mm: OFC 20 x 0,12
Conductor insulation: PE
Conductor insulation: 1,4 (Ø in mm)
Filler material: -
1st shield: OFC braided
2nd shield: -
Outer isolation: PVC black
Outer isolation Ø in mm: 2 x 4

Conductor resistance: 80 Ohm/Km
Shield resistance: 25 Ohm/Km
Capacity Inner conductor: 65 pF/m
Cap. Inner conduct. Shield/Inner conduct.: 82 pF/m
Working temperature: -20~60 °C (min. / max.)
Working Voltage overflash: 30V
Nom Impedance: 100 Ohm
