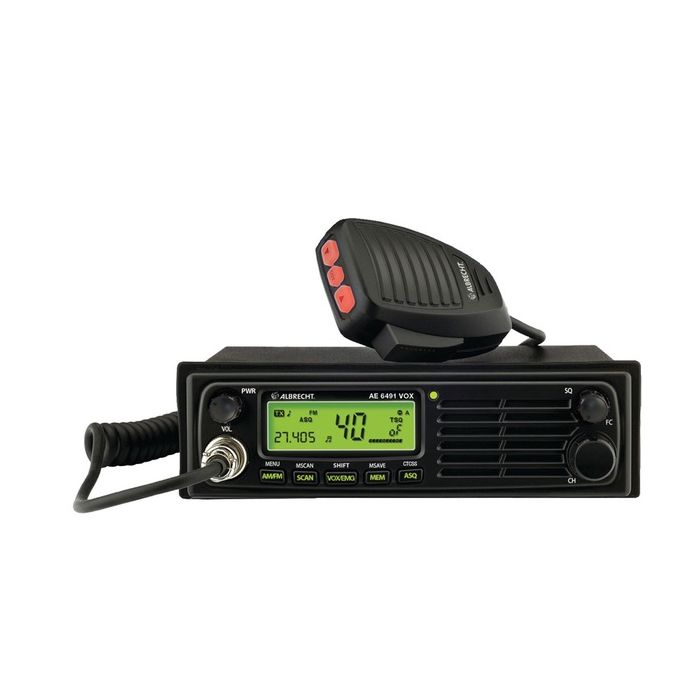

ALBRECHT AE 6491 VOX

€ 178,95 € 147,89

Artikelnummer

AE6491VOX

27Mhz transceiver 40 kanalen AM/FM 4W

Toon meer Toon minder

ArtikelnummerAE6491VOX
MerkALBRECHT

Aantal 3+ € 169,99 € 140,49

Een eenvoudig te monteren automatische 12/24 volt schakelende mobiele CB-radio met frontluidspreker en DIN-formaat mobiele montagebeugel. De nieuwste generatie CB-zendontvangers met veelkleurig groothoek-LCD garandeert leesbaarheid vanuit elk perspectief. De frontluidspreker van drie watt zorgt voor een luid, helder geluid.

Frequentiebereik: 26,965 - 27,405 MHz

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 4 Watt
Channels: 40 AM / FM
Front speaker: Yes
Display type: LCD display
Display colors: Green / Orange
VOX Function: Yes
Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
Hi/Lo power: Yes
Scan function: Yes
Memory channels: Yes
External speaker socket: Yes
S-meter: Yes
Din mount: Yes
CTCSS: Yes, 38 codes

Electrical data

Voltage: 13,8 Volt / 24 Volt /
Channel step: 10 kHz
Operating temperature: -10° to +55° C

Transmitter

Frequency allowance: ± 100 Hz
Modulation AM: from 85% to 90%
Modulation FM: 2.0 kHz

Receiver

AM sensitivity: 0.5 µV for 10 dB SINAD
FM sensitivity: 0.5 µV for 10 dB SINAD
Frequency response: 300 Hz - 3 kHz
Signal to noise ratio: 40 dB
Maximum audio power: 4 Watt
Internal speaker: 8 Ohm, round

Mechanical data

Length: 188 mm
Height: 57 mm
Width: 118 mm
Weight: 1900 gram
Antenna connector: UHF (PL) female (SO-239)
Mike connector: 6 pin microphone

Inside the box

Transceiver: 1 pcs
Microphone: 1 pcs
Fixing screws: 1 set
Mounting bracket: 1 pcs
Power lead: 1 pcs
User Manual: English, German
