ALBRECHT AE6110 VOX

€ 97,95 € 80,95

Artikelnummer

AE6110/SP

27Mhz transceiver 40 kanalen AM/FM 4W starter set

Toon meer Toon minder

ArtikelnummerAE6110/SP
MerkALBRECHT

Aantal 3+ € 93,05 € 76,90

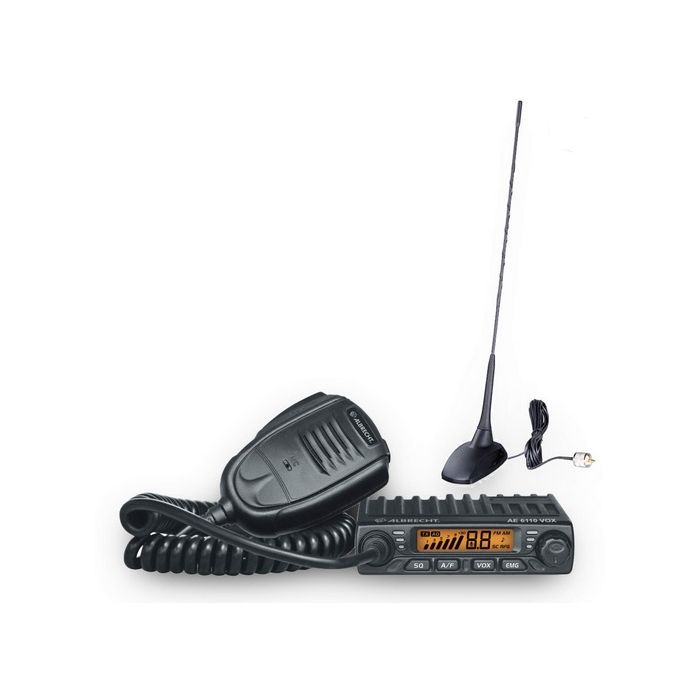

Het Albrecht AE 6110 VOX starterspakket is een compleet pakket, bestaande uit: Albrecht AE 6110 VOX radio en de Albrecht CBM-516 gestroomlijnde magneetantenne. De radio is zo ongelooflijk klein dat hij bijna overal past, hij is iets meer dan 100 mm breed en diep, en slechts 25 mm dik. Inclusief sigarettenaanstekerplug voor plug & play.

Frequentiebereik: 26.965 - 27.405 MHz

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 4 Watt
Channels: 40 AM / FM
Display type: LCD display
Display colors: Orange
Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
Emergency channel: Yes
Keypad lock: Yes
Scan function: Yes
External speaker socket: Yes
S-meter: Yes
RF gain: Yes

Electrical data (radio)

Voltage: 13,8 Volt / 24 Volt
Operating temperature: -20° to +55° C
Frequency control: PLL synthesizer

Transmitter

Frequency allowance: ± 300 Hz
Modulation AM: from 85% to 90%
Modulation FM: 1.9 kHz
Drain: 13.2 Volt: 2.0 A

Receiver

AM sensitivity: 1.0 µV for 10 dB SINAD
FM sensitivity: 1.0 µV for 20 dB SINAD
Frequency response: 300 Hz - 3 kHz
Adjacent channel selectivity: 60 dB
Maximum audio power: 1 Watt
Internal speaker: 8 Ohm, round
Image rejection: 70 dB

Mechanical data (radio)

Length: 100 mm
Height: 25 mm
Width: 102 mm
Weight: 450 gram
Antenna connector: UHF (PL)
Mike connector: RJ45 connector

Electrical data (antenna)

Electrical type: Base loaded
VSWR: ≤ 1.2:1
Power peak: 150 Watts (CW) short time
Impedance: 50 Ohm
Polarization: Linear vertical
Cable: Yes
Cable length: 4 meter / RG 58

Mechanical data (antenna)

Height: 440 mm
Weight: 205 gram
Mounting type: Magnet

Inside the box

Transceiver: 1 pcs
Microphone: 1 pcs
Mounting bracket: 1 pcs
Power lead: 1 pcs
User Manual: English, German, Spanish, Italian, French, Polish, Romania
Antenna: 1 pcs
