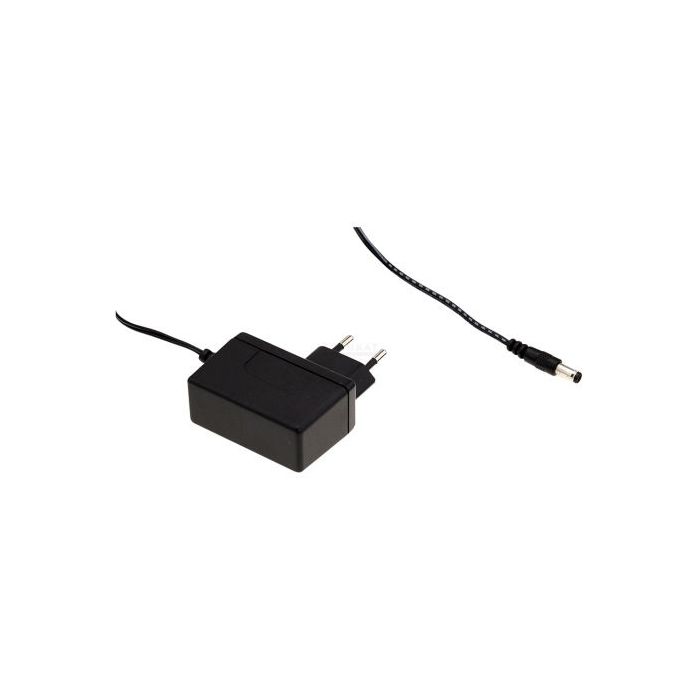

ADAPTER 15V 800MA GESCHAKELD
€ 18,95
€ 15,66
Artikelnummer
PSS1508A
- ArtikelnummerPSS1508A
- MerkMEANWELL
- Aantal 3+ € 17,99 € 14,87
Features
| • Plug-in switching power supply with europlug • Universal input • Overload protection, pulsing hiccup shutdown, auto recovery • Protections: short circuit/over load/over voltage • Insulation Class II • Low no load power consumption • Energy efficiency level VI |
 |
| Technical Specifications |
|
|
| Input Voltage: | 90...264V AC (47...63Hz) |
| Input Inrush Current, Max.: | 60A |
| No Load Power Consumption, Max.: | 0,075W |
| Operating Temperature: | -20...+60°C |
| Cable Length | |
| 15V | 1,8m |
| Input Plug: | Euro |
| Output Plug, Coax: | 2,1x5,5mm |
| Average active efficiency: | >82,96% |
| Efficiency at low load, typ. (10%): | >75% |
| Weight: | 100g |
|
|
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| PSS1508A | 15 | 0...0,8 | 12 | 3 | 80 | 84,5 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
