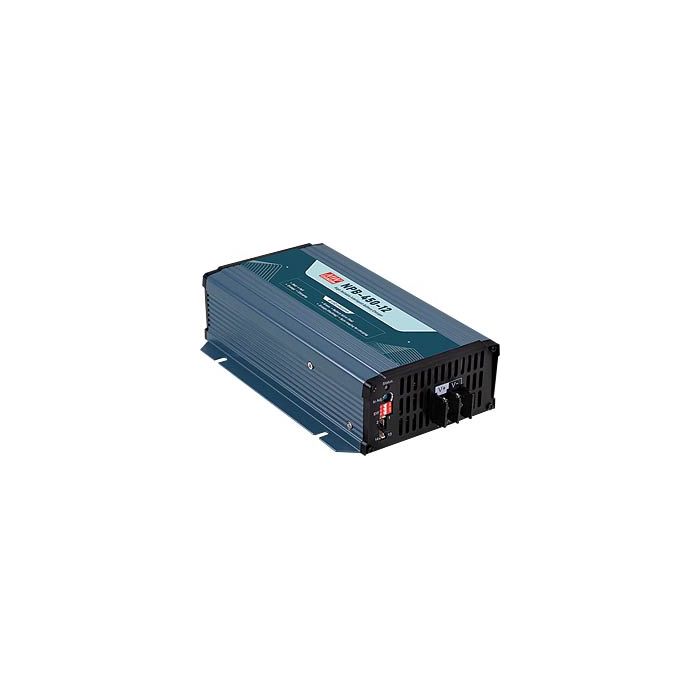

ACCULADER 72,0V 5,5A VOOR LOOD EN LION ACCU'S
€ 169,00
€ 139,67
Artikelnummer
NPB45072
- ArtikelnummerNPB45072
- MerkMEANWELL
- Aantal 2+ € 160,54 € 132,68
| Features |
| • Intelligent automatic setting with wide charging voltage • Digital/manual setting for charge levels (2/3) or charge curve together with programming adapter SBP-001 • Built-in CAN bus interface for control and monitoring • Remote ON-OFF control • Protection against: short circuit / overvoltage / overtemperature / reverse polarity • Suitable for lead-acid (Pb) and Li-ion batteries • Safety standards: UL 62368-1, EN 62368-1, IEC 60335-1, EN 60335-1 • EMC standards: EN 55032 Class B • 3 years warranty • NPB-450-_NFC: Configurable via NFC |
 |
| Technical Specifications |
|
|
| Input Voltage: | 90…264V AC / 127…370VDC |
| Inrush current, max: | 80A |
| Leakage current: | 13mA |
| Insulation Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 500V AC |
| Connection Type: | Screw terminal |
| Operating Temperature: | -30...+70°C |
| Dimensions: | 250x135x55mm |
| Weight: | 1020g |
| I/P = Input, O/P = Output, FG = Frame Ground | |
|
|
| Part No. | Uboost | Ufloat | Imax | ƞ | Caccu |
| [V] | [V] | [A] | [%] | [Ah] | |
| NPB-450-12 | 14,4 | 13,8 | 25 | 92 | 90…300 |
| NPB-450-24 | 28,8 | 27,6 | 13,5 | 93 | 45…155 |
| NPB-450-48 | 57,6 | 55,2 | 6,8 | 93 | 24…80 |
| NPB-450-72 | 72 | 69 | 5,5 | 93 | 19…64 |
| NPB-450-12NFC | 14,4 | 13,8 | 25 | 92 | 90...300 |
| NPB-450-24NFC | 28,8 | 27,6 | 13,5 | 93 | 45...155 |
| NPB-450-48NFC | 57,6 | 55,2 | 6,8 | 93 | 24...80 |
| NPB-450-72NFC | 72 | 69 | 5,5 | 93 | 19...64 |
| Uboost= Boost Charge Voltage, Ufloat= Float Charge Voltage,Imax= Output Current, max,ƞ = Efficiency, Caccu= recommended Battery Capacity | |||||
