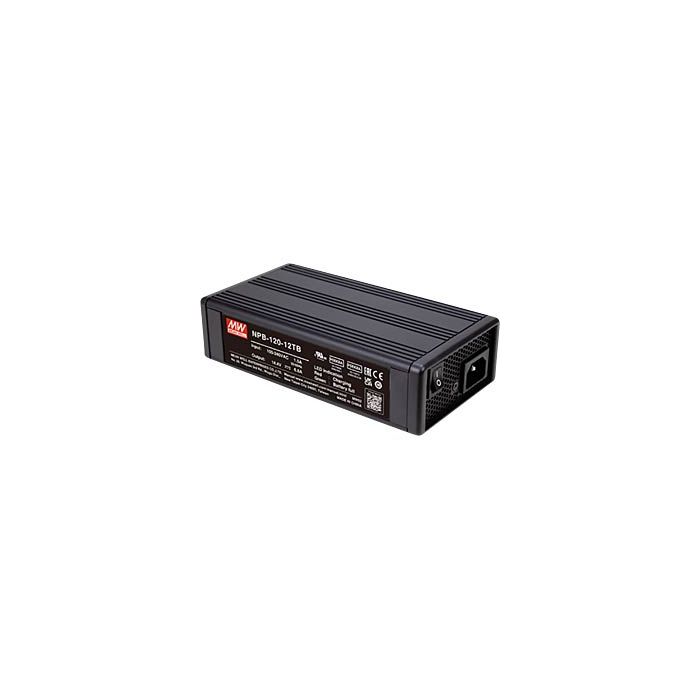

ACCULADER 57,6V 2,0A VOOR LOOD EN LION ACCU'S
€ 69,95
€ 57,81
Artikelnummer
NPB12048TB
- ArtikelnummerNPB12048TB
- MerkMEANWELL
- Aantal 2+ € 66,44 € 54,91
| Features |
| • Intelligent automatic setting with wide charging voltage • Charge voltage and charge current adjustable • Manual setting for charging stages (2/3) • LED indicator on the front for charging status • Protection: Short circuit/overvoltage/overtemperature / Reverse polarity • Suitable for lead-acid (Pb) and Li-ion batteries • NPB-120_TB: Output = Screw terminal • NPB-120_AD1: Output = Anderson connector • NPB-120_XLR: Output = XLR connector • 3 years warranty |
 |
| Technical Specifications |
|
|
| Operating Temperature: | -30...+70°C |
| Storage Temperature: | -40...+85°C |
| Insulation Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 500V AC |
| Insulation Resistance | |
| I/P-O/P, I/P-FG, O/P-FG: 500V DC: | 100MOhm |
| Dimensions: | 180x96x49mm |
| Weight: | 1300g |
|
|
| Input |
|
|
| Input Voltage: | 90…264V AC / 127…370VDC |
| Frequency Range: | 47...63Hz |
| AC Current (230V): | 0,8A |
| In-Rush Current, Cold Start (230V): | 55A |
|
|
| Output |
| Part No. | Uboost | Ufloat | Imax | ƞ | Caccu |
| [V] | [V] | [A] | [%] | [Ah] | |
| NPB-120-12XLR | 14,4 | 13,8 | 6,8 | 86,5 | 20…90 |
| NPB-120-12AD1 | 14,4 | 13,8 | 6,8 | 86,5 | 20…90 |
| NPB-120-12TB | 14,4 | 13,8 | 6,8 | 87 | 20…90 |
| NPB-120-24XLR | 28,8 | 27,6 | 4 | 89 | 15…50 |
| NPB-120-24AD1 | 28,8 | 27,6 | 4 | 89 | 15…50 |
| NPB-120-24TB | 28,8 | 27,6 | 4 | 89,5 | 15…50 |
| NPB-120-48XLR | 57,6 | 55,2 | 2 | 90,5 | 7…25 |
| NPB-120-48AD1 | 57,6 | 55,2 | 2 | 90,5 | 7…25 |
| NPB-120-48TB | 57,6 | 55,2 | 2 | 90,5 | 7…25 |
| Uboost= Boost Charge Voltage, Ufloat= Float Charge Voltage,Imax= Output Current, max,ƞ = Efficiency, Caccu= recommended Battery Capacity | |||||
