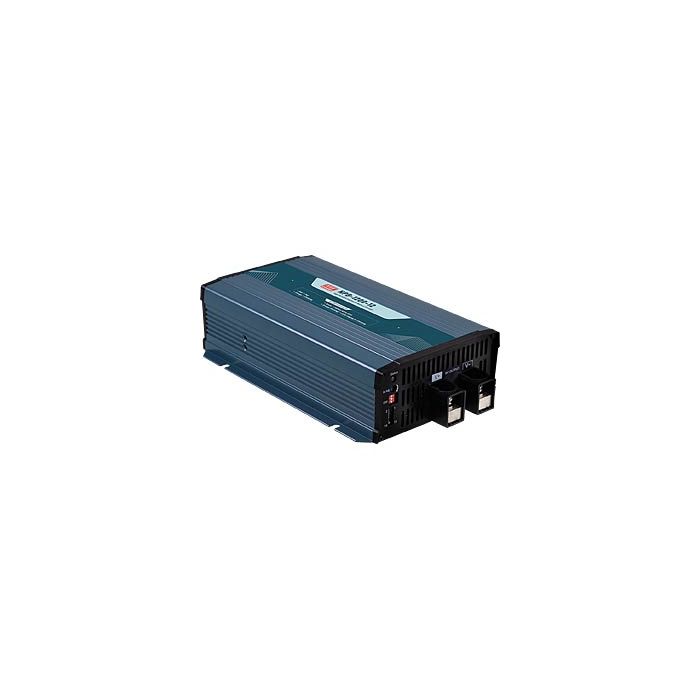

ACCULADER 57,6V 18A VOOR LOOD EN LION ACCU'S
€ 335,00
€ 276,86
Artikelnummer
NPB120048
- ArtikelnummerNPB120048
- MerkMEANWELL
- Aantal 2+ € 318,24 € 263,01
| Features |
| • Intelligent automatic setting with wide charging voltage • Digital/manual setting for charge levels (2/3) or charge curve together with programming adapter SBP-001 • Built-in CAN bus interface for control and monitoring • Remote ON-OFF control • Protection against: short circuit / overvoltage / overtemperature / reverse polarity • Suitable for lead-acid (Pb) and Li-ion batteries • 3 years warranty |
 |
| Technical Specifications |
|
|
| Operating Temperature: | -30...+70°C |
| Storage Temperature: | -40...+85°C |
| Insulation Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 500V AC |
| Insulation Resistance | |
| I/P-O/P, I/P-FG, O/P-FG: 500V DC: | 100MOhm |
| Dimensions: | 250x158x67mm |
| Weight: | 1930g |
| I/P = Input, O/P = Output, FG = Frame Ground | |
|
|
| Input |
|
|
| Input Voltage: | 90…264V AC / 127…370VDC |
| Frequency Range: | 47...63Hz |
| AC Current (230V): | 6,5A |
| In-Rush Current, Cold Start (230V): | 50A |
|
|
| Output |
| Part No. | Uboost | Ufloat | Imax | ƞ | Caccu |
| [V] | [V] | [A] | [%] | [Ah] | |
| NPB-1200-12 | 14,4 | 13,8 | 70 | 92 | 240…800 |
| NPB-1200-24 | 28,8 | 27,6 | 36 | 93 | 120…420 |
| NPB-1200-48 | 57,6 | 55,2 | 18 | 94 | 60…210 |
| Uboost= Boost Charge Voltage, Ufloat= Float Charge Voltage,Imax= Output Current, max,ƞ = Efficiency, Caccu= recommended Battery Capacity | |||||
