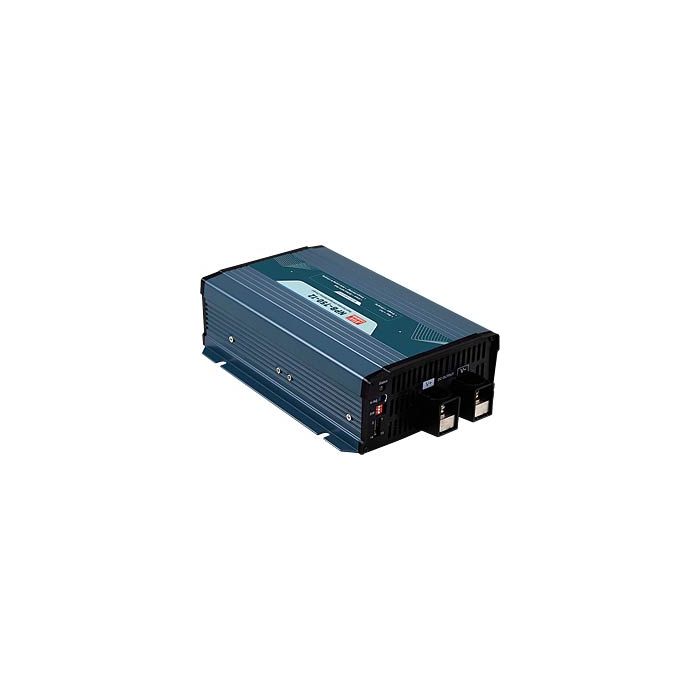

ACCULADER 57,6V 11,3A VOOR LOOD EN LION ACCU'S
€ 229,00
€ 189,26
Artikelnummer
NPB75048
- ArtikelnummerNPB75048
- MerkMEANWELL
- Aantal 2+ € 217,55 € 179,79
| Features |
| • Intelligent automatic setting with wide charging voltage • Digital/manual setting for charging stages (2/3) or charging curve together with programming adapter SBP-001 • Built-in CANBus interface for control and monitoring • LED indicator on the front for charging status • Protection: Short circuit/overvoltage/overtemperature / Temperature compensation / Reverse polarity • Remote ON-OFF control • Suitable for lead-acid (Pb) and Li-ion batteries • 3 years warranty |
 |
| Technical Specifications |
|
|
| Operating Temperature: | -30...+70°C |
| Storage Temperature: | -40...+85°C |
| Insulation Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 500V AC |
| Insulation Resistance | |
| I/P-O/P, I/P-FG, O/P-FG: 500V DC: | 100MOhm |
| Dimensions: | 230x158x67mm |
| Weight: | 1840g |
|
|
| Input |
|
|
| Input Voltage: | 90…264V AC / 127…370VDC |
| Frequency Range: | 47...63Hz |
| AC Current (230V): | 4A |
| In-Rush Current, Cold Start (230V): | 50A |
|
|
| Output |
| Part No. | Uboost | Ufloat | Imax | ƞ | Caccu |
| [V] | [V] | [A] | [%] | [Ah] | |
| NPB-750-12 | 14,4 | 13,8 | 43 | 92 | 150…500 |
| NPB-750-24 | 28,8 | 27,6 | 22,5 | 93 | 80…260 |
| NPB-750-48 | 57,6 | 55,2 | 11,3 | 93 | 40…130 |
| Uboost= Boost Charge Voltage, Ufloat= Float Charge Voltage,Imax= Output Current, max,ƞ = Efficiency, Caccu= recommended Battery Capacity | |||||
