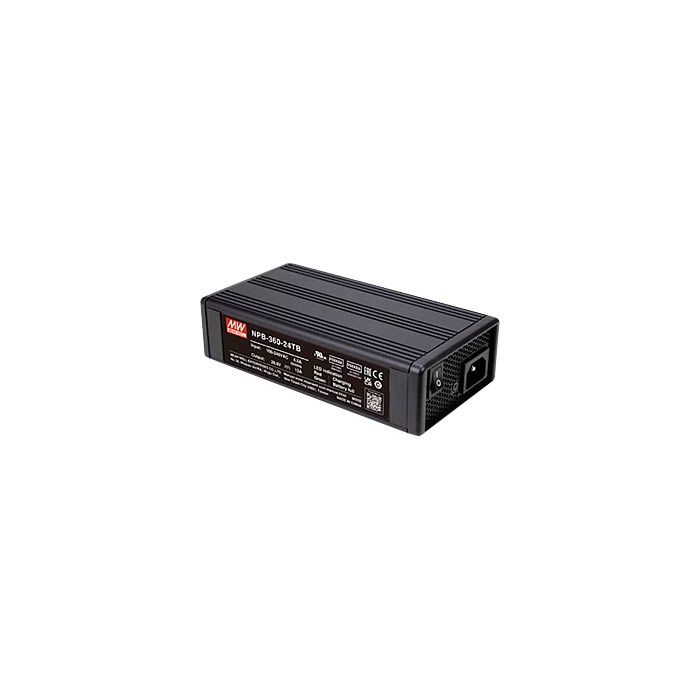

ACCULADER 28,8V 12,0A VOOR LOOD EN LION ACCU'S
€ 109,00
€ 90,08
Artikelnummer
NPB36024TB
- ArtikelnummerNPB36024TB
- MerkMEANWELL
- Aantal 2+ € 103,54 € 85,57
| Features |
| • Intelligent automatic setting with wide charging voltage • Charge voltage and charge current adjustable • Manual setting for charging stages (2/3) • LED indicator on the front for charging status • Protection: Short circuit/overvoltage/overtemperature / Reverse polarity • Suitable for lead-acid (Pb) and Li-ion batteries • NPB-360_TB: Output = Screw terminal • NPB-360_AD1: Output = Anderson connector • NPB-360_XLR: Output = XLR connector • 3 years warranty |
 |
| Technical Specifications |
|
|
| Operating Temperature: | -30...+70°C |
| Storage Temperature: | -40...+85°C |
| Insulation Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 500V AC |
| Insulation Resistance | |
| I/P-O/P, I/P-FG, O/P-FG: 500V DC: | 100MOhm |
| Dimensions: | 180x96x49mm |
| Weight: | 1300g |
| I/P = Input, O/P = Output, FG = Frame Ground | |
|
|
| Input |
|
|
| Input Voltage: | 90…264V AC / 127…370VDC |
| Frequency Range: | 47...63Hz |
| AC Current (230V): | 2,2A |
| In-Rush Current, Cold Start (230V): | 50A |
|
|
| Output |
| Part No. | Uboost | Ufloat | Imax | ƞ | Caccu |
| [V] | [V] | [A] | [%] | [Ah] | |
| NPB-360-12XLR | 14,4 | 13,8 | 20 | 87 | 65…195 |
| NPB-360-12AD1 | 14,4 | 13,8 | 20 | 87 | 65…195 |
| NPB-360-12TB | 14,4 | 13,8 | 20 | 88,5 | 65…195 |
| NPB-360-24XLR | 28,8 | 27,6 | 12 | 91 | 40…125 |
| NPB-360-24AD1 | 28,8 | 27,6 | 12 | 91 | 40…125 |
| NPB-360-24TB | 28,8 | 27,6 | 12 | 92 | 40…125 |
| NPB-360-48XLR | 57,6 | 55,2 | 6 | 92 | 20…65 |
| NPB-360-48AD1 | 57,6 | 55,2 | 6 | 92 | 20…65 |
| NPB-360-48TB | 57,6 | 55,2 | 6 | 92,5 | 20…65 |
| Uboost= Boost Charge Voltage, Ufloat= Float Charge Voltage,Imax= Output Current, max,ƞ = Efficiency, Caccu= recommended Battery Capacity | |||||
