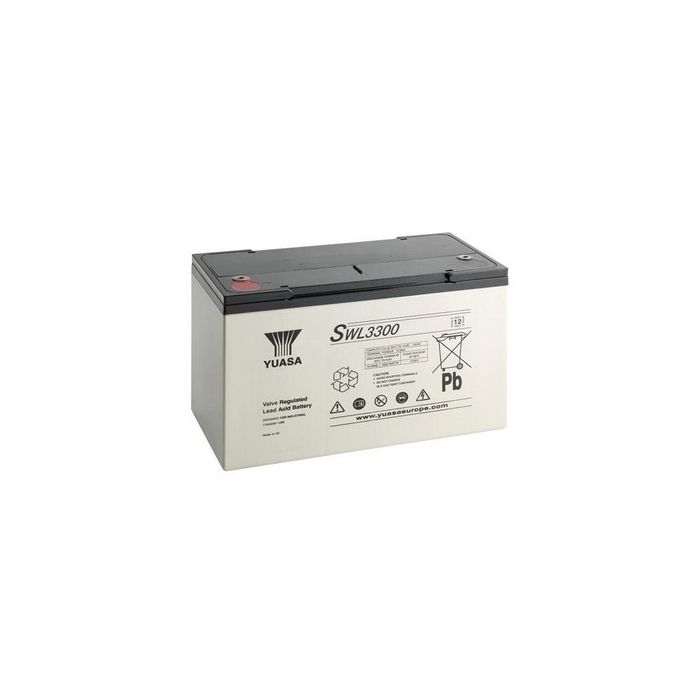

ACCU 12V 110A 350X166X174MM 23.3KG AANSLUITING M8
€ 339,32
€ 280,43
Artikelnummer
SWL3300
- ArtikelnummerSWL3300
- MerkYUASA
- Aantal 4+ € 312,17 € 257,99
Features
| • Electrolyte bound in the glass fiber fleece • Lead-calcium grids for a longer service life • Valve controlled construction, almost 100% oxygen recombination • Very good charging efficiency • Fast recovery after deep discharge • High rate discharge performance VRLA battery |
 |
| Technical Specifications |
|
|
| Nominal Voltage: | 12V |
| Housing Material: | ABS |
| Low self-discharge, at 20 ° C: | 3% per month |
| EUROBAT Classification (Standard Commercial) | |
| Series SW: | 6 to 9 years |
| Series SWL: | 10 to 12 years |
|
|
| Part No. | P | TS |
| [W] | [°C] | |
| SW280 | 280 | -20...+60 |
| SWL780V | 780 | -20...+60 |
| SWL1100 | 1100 | -20...+60 |
| SWL1850 | 1850 | -20...+50 |
| SWL3300 | 3300 | -20...+50 |
| P = 10m rate Constant Power (Typ) to 9,6V at 20°C (W/Block), TS = Storage (in fully charged condition) | ||
|
||
| Terminal Type, Dimensions and Weight |
| Part No. | Terminal Type | L | W | H | Weight |
| [mm] | [mm] | [mm] | [kg] | ||
| SW280 | Faston 6,35 | 151 | 65 | 97,5 | 2,6 |
| SWL1100 | M5 (F) | 166 | 125 | 175 | 10,3 |
| SWL1850 | M6 (F) | 197 | 165 | 170 | 14,5 |
| SWL3300 | M8 (F) | 350 | 166 | 174 | 23,3 |
| SWL780V | M5 (F) | 350 | 168 | 225 | 37,7 |
| L = Lenght (Tolerances see data sheet), W = Width (Tolerances see data sheet), H = Total Height (Tolerances see data sheet) |
|||||
|
|||||
| Recycling |
All used lead batteries must be given to an environmentally-friendly waste bank for disposal in accordance with local regulations.
Do not dispose of used batteries in domestic waste!
