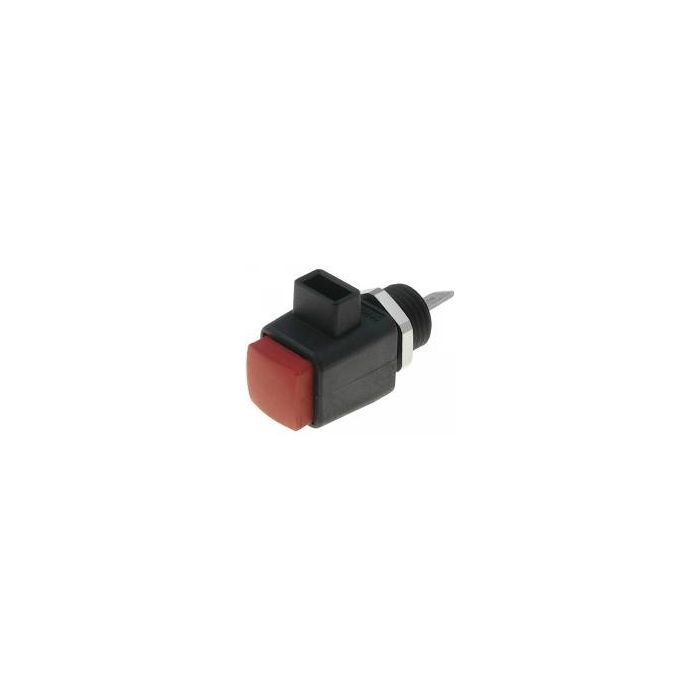

AANSLUITKLEM SNELKOPPELING VEILIGHEID ROOD 16A
€ 6,50
€ 5,37
Artikelnummer
ESD798/RD
- ArtikelnummerESD798/RD
- MerkSCHUTZINGER
- Aantal 10+ € 5,84 € 4,83
Features
| • Fully insulated • For metal panels • Panel thickness: 0,8...7mm • Terminal: FR 6,3x0,8mm or soldering • Insertion wondows: 8x4mm • Connecting tab: 6,3x0,8mm • Colours: black, red, blue, yellow and green |
 |
| Technical Specifications |
|
|
| Contact Parts | Ni-plated |
| Insulation: | PA 6.6 (Polyamid) |
| Colours: | see Price Table |
| Max. Torque for Nuts | |
| ESD789_: | 85Ncm |
| SDK799_: | - |
| SDK5230_: | 120Ncm |
| Spring Force: | 20N |
| Max. Transition Resistance: | 3mOhm |
| SDK5230_: | 5mOhm |
| Rated Current: | 16A |
| Rated Voltage: | 300V (Cat. II) |
| Operating Temperature Range: | -25°C...+90°C |
|
|
| REACh |
SDK5230_, SDK799_: REACh Art. 33: contains Lead CAS# 7439-92-1
