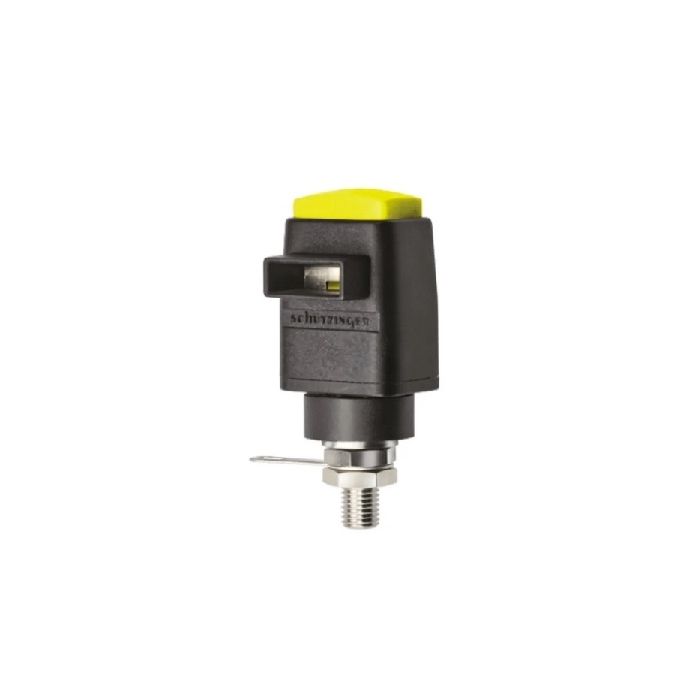

AANSLUITKLEM SNELKOPPELING VEILIGHEID GEEL 16A
€ 9,95
€ 8,22
Artikelnummer
SDK5230/GL
- ArtikelnummerSDK5230/GL
- MerkSCHUTZINGER
- Aantal 10+ € 8,94 € 7,39
Features
| • Fully insulated • For metal panels • Panel thuckness: 0,8...5mm • Terminal: soldering loop or cable lug • Insertion window: 12,5x4mm • Colours: black, red, blue, yellow and green |
 |
| Technical Specifications |
|
|
| Contact Parts | Ni-plated |
| Insulation: | PA 6.6 (Polyamid) |
| Colours: | see Price Table |
| Max. Torque for Nuts | |
| ESD789_: | 85Ncm |
| SDK799_: | - |
| SDK5230_: | 120Ncm |
| Spring Force: | 20N |
| Max. Transition Resistance: | 3mOhm |
| SDK5230_: | 5mOhm |
| Rated Current: | 16A |
| Rated Voltage: | 300V (Cat. II) |
| Operating Temperature Range: | -25°C...+90°C |
|
|
| REACh |
SDK5230_, SDK799_: REACh Art. 33: contains Lead CAS# 7439-92-1
