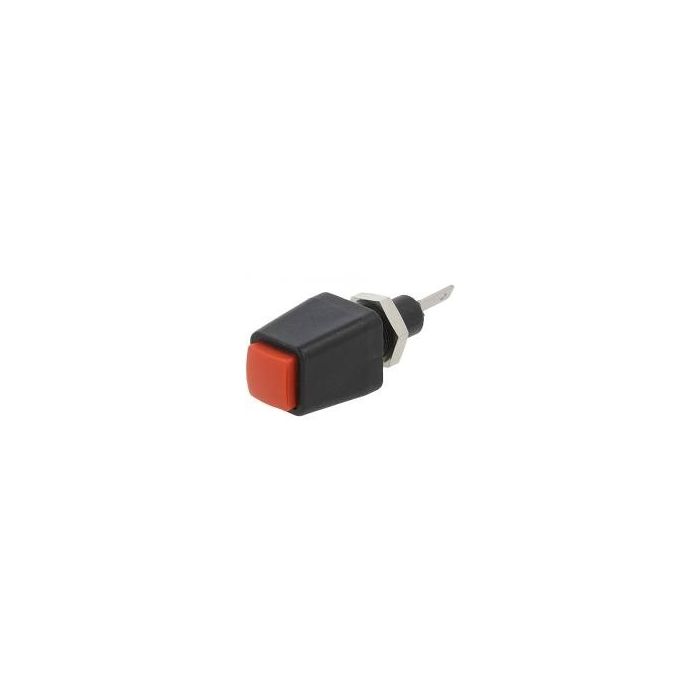

AANSLUITKLEM SNELKOPPELING ROOD 5A

Features

• Fully insulated mounting for metal panels • By pressing the button of the terminal can be wires and cords disconnect between the sprung jaws. • Particularly suitable for quick connection and testing of serial devices. • ESD6554_: for panels with thickness 0,8...4mm; flat connector 2,8x0,5mm • Colours: black, red, blue, yellow and green

Contacts:	Ni-plated
Insulating Parts:	PA 6.6 (Polyamid)
Colours:	see Price Table
Max. Transition Resistance
ESD6554	5mOhm
Max. Torque for the Fastening Nuts:
ESD6554_:	30Ncm
Rated Current:
ESD6554_:	5A
Rated Voltage:	33V AC / 70V DC
Operating Temperature Range:	-25°C...+90°C

 REACh Art. 33: contains Lead CAS# 7439-92-1
