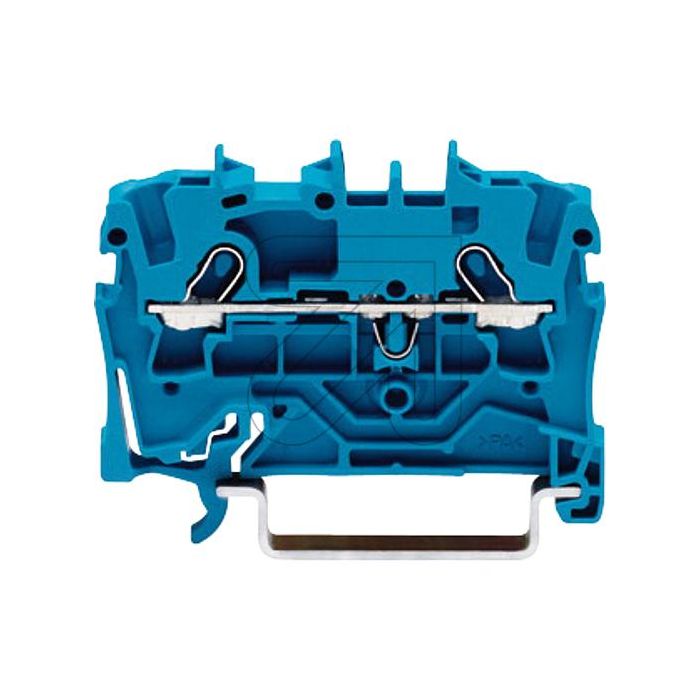

AANSLUITKLEM BLAUW 4.2MM VOOR 35MM DINRAIL MAX. 2.5MM2 KLEMAANSLUITING

€ 1,25 € 1,03

Artikelnummer

AKDR30BL

Toon meer Toon minder

Miscellaneous

Name	Value	Unit
Total number of connection points	2
Total number of potentials	1
Color	blue
Ratings according to 1	IEC/EN 60947-7-1
Rated voltage (III / 3) [V]	800	V
Rated surge voltage (III / 3) [kV]	8	kV
Nominal current [A]	18	A
Nominal current (2) [A]	24	A
Rated voltage EN (Ex e II) [V]	550	V
Nominal current (Ex e II) [A]	17	A
Nominal current (Ex e II) with jumper [A]	16	A
Connection technology	Push-in CAGE CLAMP^®
Number of connection points	2
Actuation type	Betätigungswerkzeug
Connectable conductor materials	Kupfer
Nominal cross section	1.5 mm²
Solid sizes	0.25 … 2.5 mm² / 22 … 14 AWG
solid, directly pluggable	0.5 … 2.5 mm² / 20 … 14 AWG
Fine-stranded wires	0.25 … 2.5 mm² / 22 … 14 AWG
min. fine-stranded with insulated ferrule, push-in terminati	0.75 mm² / 18 AWG
Strip length	9 … 11 mm / 0.35 … 0.43 in
Type of wiring	Front-entry wiring
Design	horizontal
Marking level	Center/Side marking
Insulating material	Polyamide 66 (PA 66)
Fire load [MJ]	0.074	MJ
Weight [g]	3.533	g
Width	4.2 mm / 0.165 in
Height from upper-edge of DIN-rail	32.9 mm / 1.295 in
Length	48.5 mm / 1.909 in
Type of mounting	DIN-35 rail
