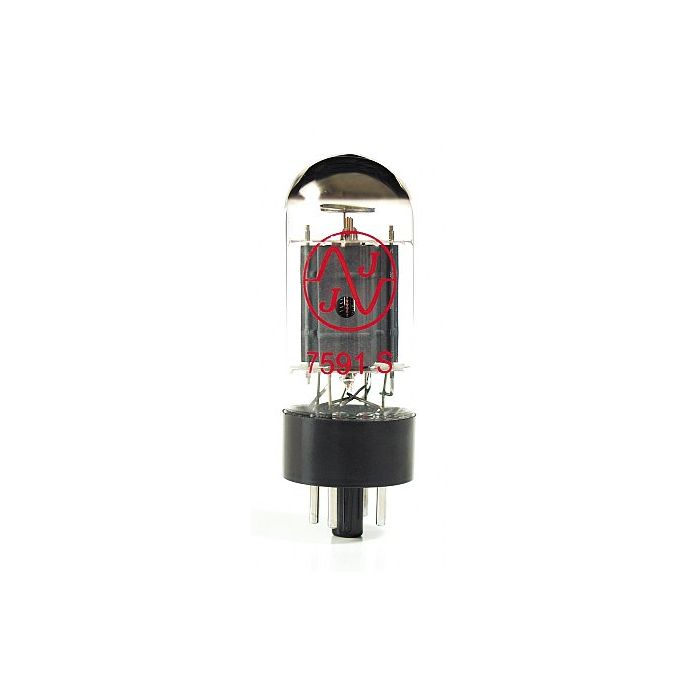

EINDBUIS 8P OKTAL PENTODE

POWER PENTODE
Base: OCTAL
Uf = 6,3 V
If = 0,8 A
Typical characteristic:
Class A1 amplifier
Ua = 300 V
Ug2 = 300 V
Ug1 = -10 V
Ia = 60 mA
Ig2 = 8 mA
S = 10 mA/V
Ri = 29 kÙ
ì = 16,8
Limiting values:
Ua = 550 V
Ug2 = 440 V
Wa = 19 W
Wg2 = 3,3 W
Ik = 85 mA
Rg1 = max 0,3 MÙ
(fixed bias)
max 1 MÙ
(cathode bias)
Ukf = max 200 V
Capacitances:
cg1 = 10 pF
ca = 5 pF
ca/g1 = 0,25 pF
