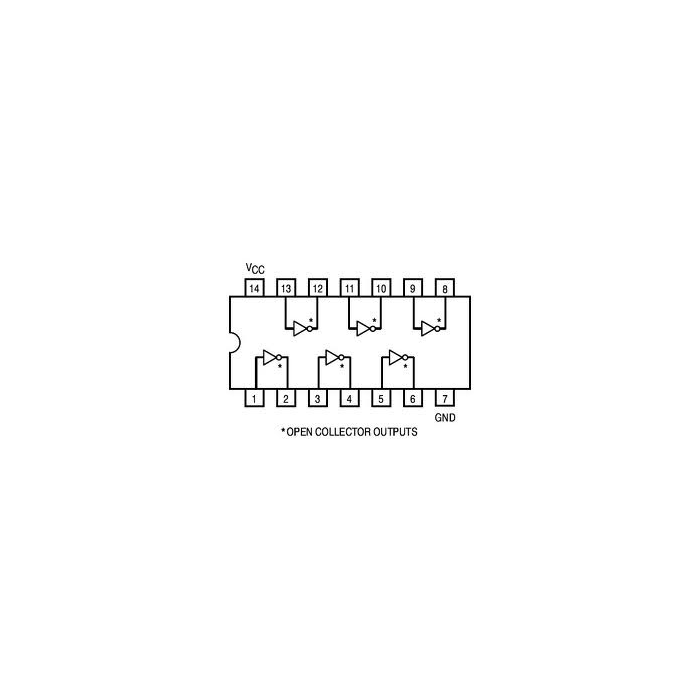

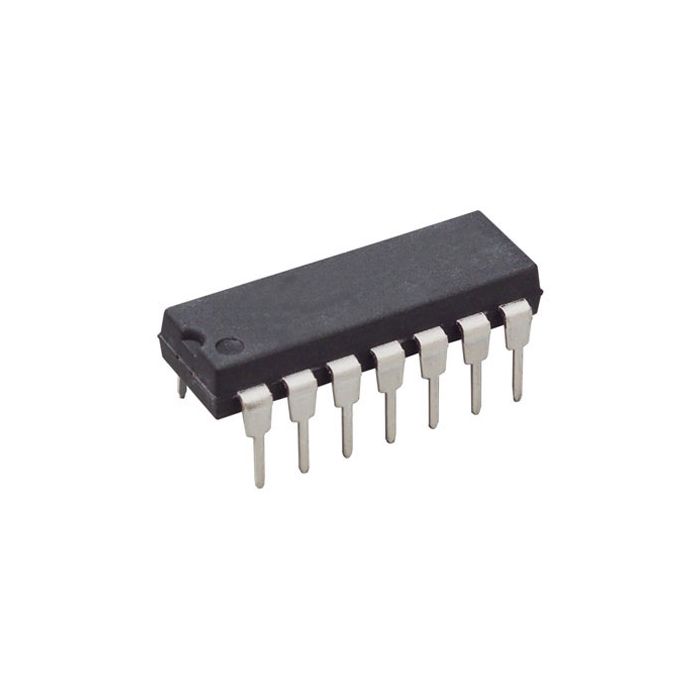

HEX INVERTER 14P

74LS05 electrical characteristic: (1)VIH Input HIGH Voltage: min=2.0 V; (2)VIL Input LOW Voltage: max=0.8V; (3)VIK Input Clamp Diode Voltage: typ=–0.65V, max=–1.5V; (4)IOH Output HIGH Current: max=100ìA; (5)VOL Output LOW Voltage: typ=0.35V, max=0.5V; (6)IIH Input HIGH Current: max=20ìA; (7)IIL Input LOW Current: max=–0.4mA; (8)ICC Power Supply Current Total, Output HIGH: max=2.4mA, Output LOW: max=6.6mA
