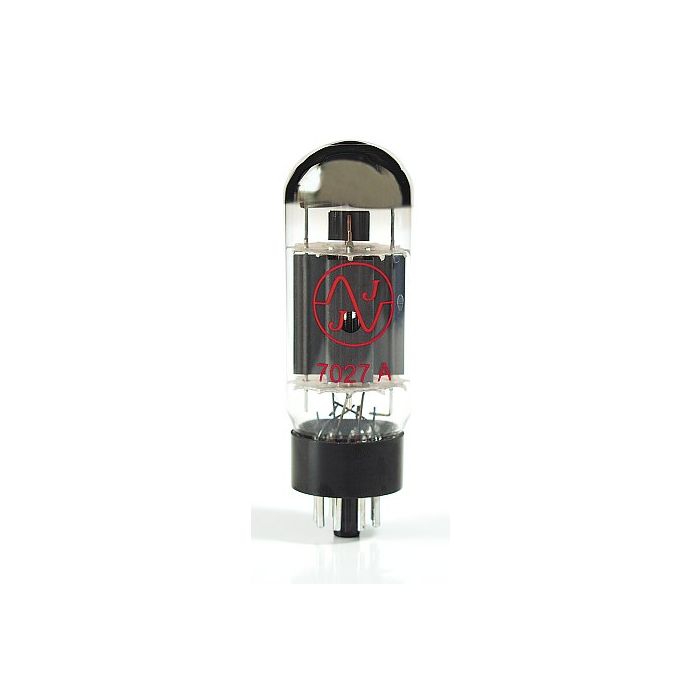

EINDBUIS 8P OKTAL BEAM PENTODE

A. F. BEAM PENTODE
Base: OCTAL
Uf = 6,3 V
If = cca 0,9 A
Typical characteristic:
Class A1:
Singl tube Push-Pull
Ua = 250 V 270 V
Ug2 = 250 V 270 V
Ug1 = -14 V -17,5 V
Ia= = 72 mA 134 mA
Ig2 = 5 mA 11 mA
Ra = 22,5 kÙ
Ra-a = - 5 kÙ
N = 6,5 W 17,5 W
Limiting values:
Triode
Ua = 450 V
Ug2 = 450 V
Wa = 30 V
Pentode
Ua = 500 V
Ug2 = 450 V
Wa = 30 W
Grid No 1 Circuit Resistance
Fixed Bias 0,1 MW 0,1 MW
Self Bias 0,5 MW 0,5 MW
Capacitances:
cg1 = 12,5 pF
Ca = 10 pF
Ca/g1 = 3 pF
