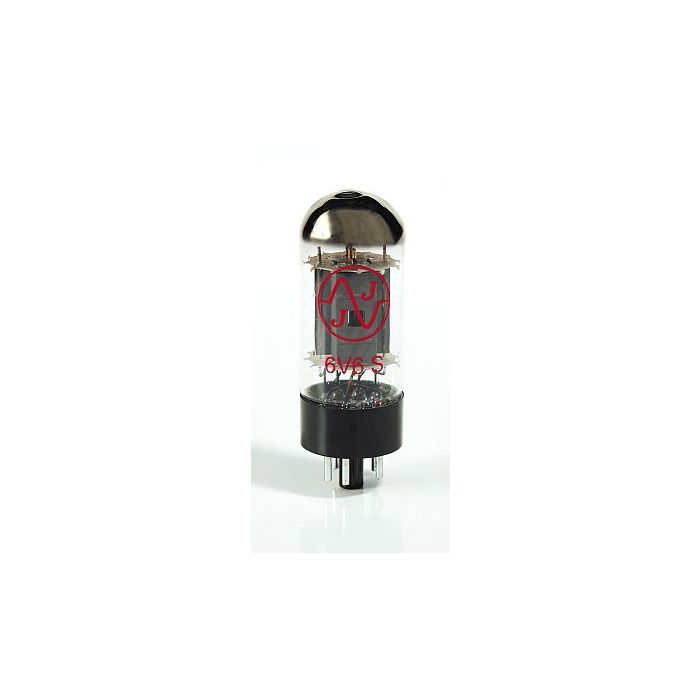

EINDBUIS 8P OKTAL BEAM PENTODE
€ 44,50
€ 36,78
Artikelnummer
6V6S
- Artikelnummer6V6S
- MerkJJ ELECTRONIC
- Aantal 5+ € 40,05 € 33,10
A. F. BEAM PENTODE
Base: OCTAL
Uf = 6,3 V
If = ca 0,5 A
Typical
characteristic: Class A1
singl tube Push-Pull
Ua = 250 V 250 V
Ug2 = 250 V 250 V
Ug1 = -12,5 V -15 V
Ia = 45 mA 70 mA
Ig2 = 5 mA 13 mA
Ra = 50 kÙ -
Ra-a = - 10 kÙ
N = 4,5 W 10W
Limiting values:
Triode Pentode
Ua = 450 V 500 V
Ug2 = 450 V 450 V
Wa = 10 W 14 W
Grid No 1 Circuit Resistence
Fixed Bias 0,1 MÙ 0,1 MÙ
Self Bias 0,5 MÙ 0,5 MÙ
Capacitances:
Cg1 = 9 pF
Ca = 8,5 pF
Ca/g1 = 0,7 pF
Substitutes: 5871, 6AY5, 6P6C, 6V6G,
6V6GT, 6V6GTA, 6V6GTY, 6V6Y, 7184,
CV509, CV510, CV511, OSW3106, VT107,
VT227, WT2100082, WTT123, 7408
Base: OCTAL
Uf = 6,3 V
If = ca 0,5 A
Typical
characteristic: Class A1
singl tube Push-Pull
Ua = 250 V 250 V
Ug2 = 250 V 250 V
Ug1 = -12,5 V -15 V
Ia = 45 mA 70 mA
Ig2 = 5 mA 13 mA
Ra = 50 kÙ -
Ra-a = - 10 kÙ
N = 4,5 W 10W
Limiting values:
Triode Pentode
Ua = 450 V 500 V
Ug2 = 450 V 450 V
Wa = 10 W 14 W
Grid No 1 Circuit Resistence
Fixed Bias 0,1 MÙ 0,1 MÙ
Self Bias 0,5 MÙ 0,5 MÙ
Capacitances:
Cg1 = 9 pF
Ca = 8,5 pF
Ca/g1 = 0,7 pF
Substitutes: 5871, 6AY5, 6P6C, 6V6G,
6V6GT, 6V6GTA, 6V6GTY, 6V6Y, 7184,
CV509, CV510, CV511, OSW3106, VT107,
VT227, WT2100082, WTT123, 7408
