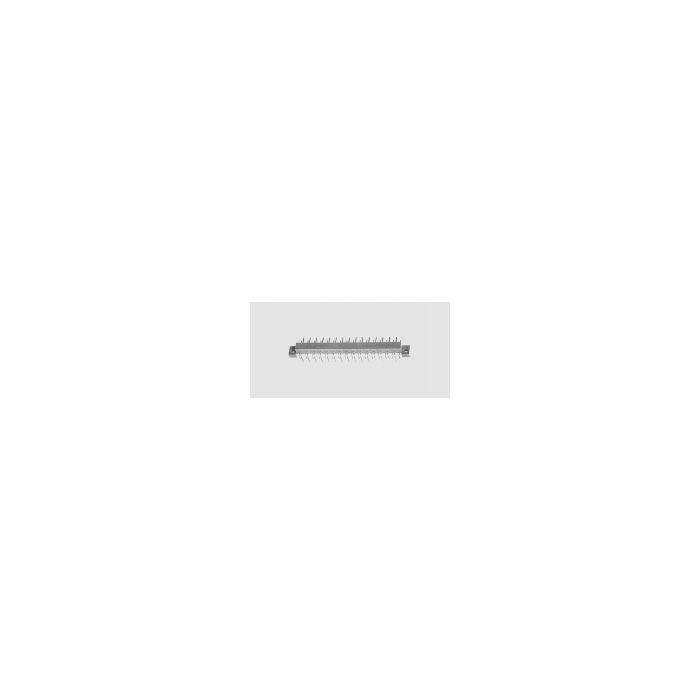

DIN 41617 31P MALE PRINT

Technical Specifications
Insulation Shell: Polycarbonate (UL94V-1), Glass Filled
Contact Material: Cu Alloy
Contact Surface: Hard Silver
Mating and Withdraw Force
13-Pole: �30N
21-Pole: �48N
31-Pole: �70N
Air and Creepage (Contact/Mass): ³1,0mm
Operating Voltage: 250V AC
Test Voltage (Contact/Mass): 1150Veff.
Insulation Group: A (VDE 0110)
Operating Current (20°C): 4A
Contact Resistance: �15mW
Insulation Resistance: ³1011W
Capacitance: �1pF
Temperature Range: -55...+125°C
