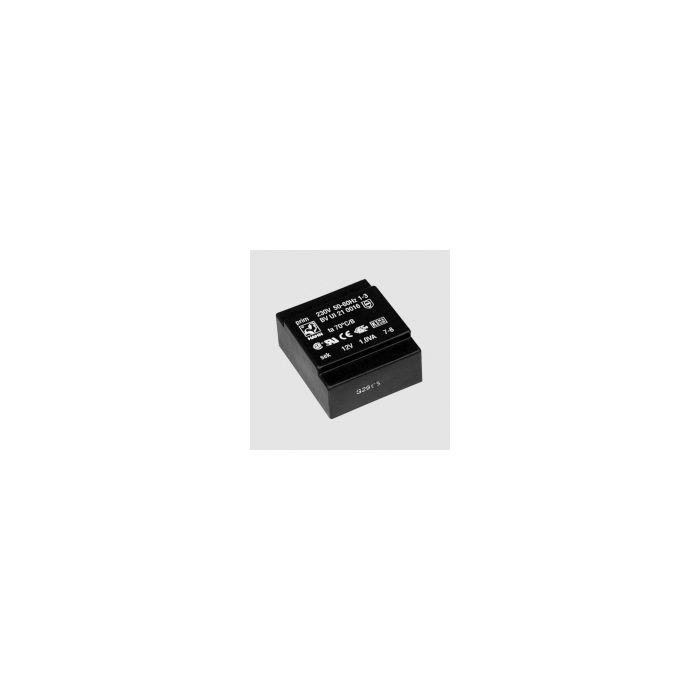

VLAKTRANSFORMATOR 1VA 2X15V 2X33MA
€ 19,95
€ 16,49
Artikelnummer
2150001MLP
- Artikelnummer2150001MLP
- MerkHAHN
- Aantal 5+ € 17,96 € 14,84
Construction
Vacuum encapsulated, bobbin with two chambers
Leads through soldering pins to accommodate PCB mounting
Designed to match VDE 0570 and EN61558 regulations
Fully tested at primary and secondary voltage of 6000V, leakage and sparking distance in air is at least 10mm
Types with double primary and secondary windings (2x115V) suitable for application in 115V as well as 230V power supplies
Dimensions: (lxBxH)33,4x28.9x14,5mm
Input: 230VAC
Output: 2x15VAC 2x33mA
Vacuum encapsulated, bobbin with two chambers
Leads through soldering pins to accommodate PCB mounting
Designed to match VDE 0570 and EN61558 regulations
Fully tested at primary and secondary voltage of 6000V, leakage and sparking distance in air is at least 10mm
Types with double primary and secondary windings (2x115V) suitable for application in 115V as well as 230V power supplies
Dimensions: (lxBxH)33,4x28.9x14,5mm
Input: 230VAC
Output: 2x15VAC 2x33mA
