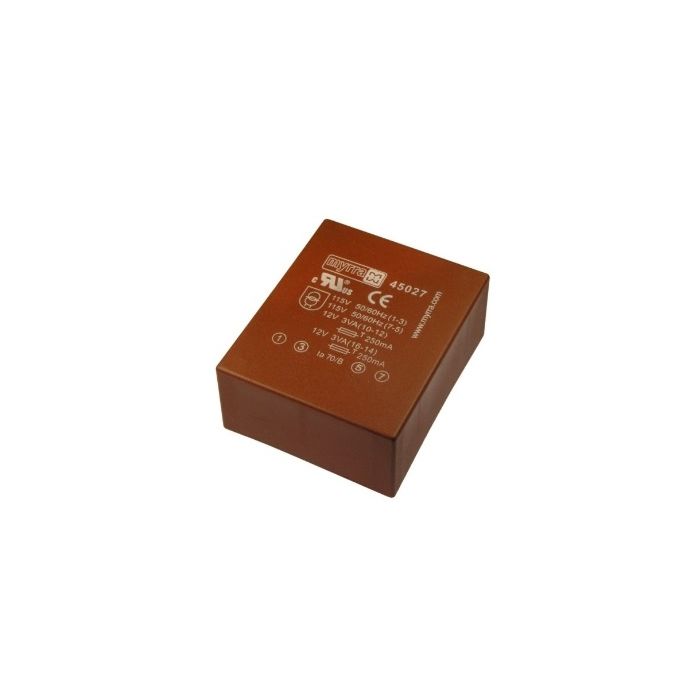

VLAKTRANSFORMATOR 6VA 2X12V 2X250MA
€ 6,95
€ 5,74
Artikelnummer
2120060MLP
- Artikelnummer2120060MLP
- MerkMYRRA
- Aantal 5+ € 6,24 € 5,16
Construction
• Vacuum encapsulated, bobbin with two chambers
• Leads through soldering pins to accommodate PCB mounting
• Designed to match EN61558, UL506 approved
• Types with double primary and secondary windings (2x115V) suitable for application in 115V as well as 230V power supplies
Size
| Performance | Height h | Weight | |
| [mm] | [g] | ||
| 4VA | 19 | 150 | |
| 6VA | 22 | 185 | |
| 10VA | 28 | 260 | |
 |
|||
| Required Protection |
| Performance | Primary Fuse | |
| 6VA | 2x315mA | |
| 10VA | 2x315mA | |
| 16VA | 125mA (115V) / 63mA (230V) |
