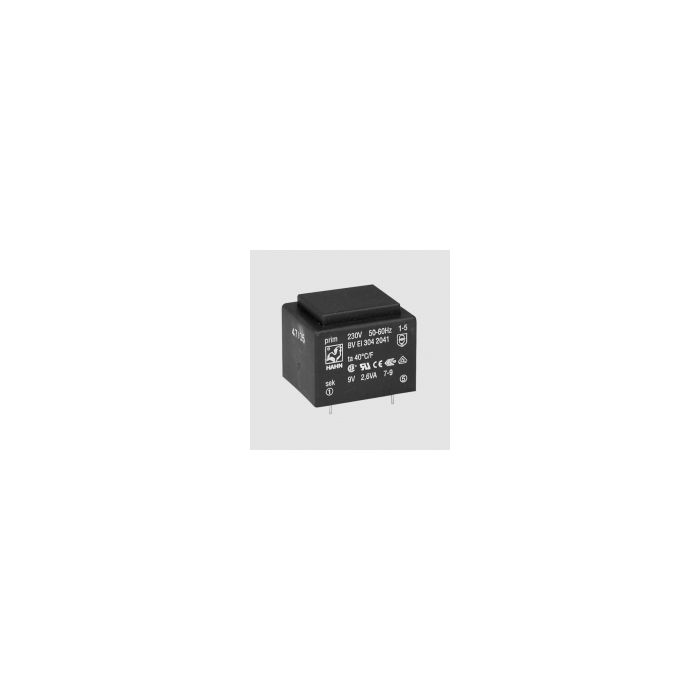

TRANSFORMATOR 2.6VA 2X12V 1X108MA
€ 5,45
€ 4,50
Artikelnummer
2120026M
- Artikelnummer2120026M
- MerkHAHN
- Aantal 5+ € 4,90 € 4,05
Features
Winding of double coated copper wire for better insulation, vacuum casted, two chambers
Connections for PCB use
Technical Specifications
Temperature Resistance Class1): Ta 40/F
End Temperature in Case of Short Circuit, Max2): 190°C
End Temperature in Standard Use: 140°C
Permissible Overtemperature3): 100K
Primary Voltage (50/60Hz): 230V AC
Performance, Max. (Ta 40/F)2): 2,6VA
Test Voltage: 4kV/50Hz
No-Load Voltage (According to VDE 0570): <2 x UN sec.
Dimensions: (lxBxH)32,5x27,5x26,8mm
Input: 230VAC
Output: 2x12VAC 2x104mA
Winding of double coated copper wire for better insulation, vacuum casted, two chambers
Connections for PCB use
Technical Specifications
Temperature Resistance Class1): Ta 40/F
End Temperature in Case of Short Circuit, Max2): 190°C
End Temperature in Standard Use: 140°C
Permissible Overtemperature3): 100K
Primary Voltage (50/60Hz): 230V AC
Performance, Max. (Ta 40/F)2): 2,6VA
Test Voltage: 4kV/50Hz
No-Load Voltage (According to VDE 0570): <2 x UN sec.
Dimensions: (lxBxH)32,5x27,5x26,8mm
Input: 230VAC
Output: 2x12VAC 2x104mA
