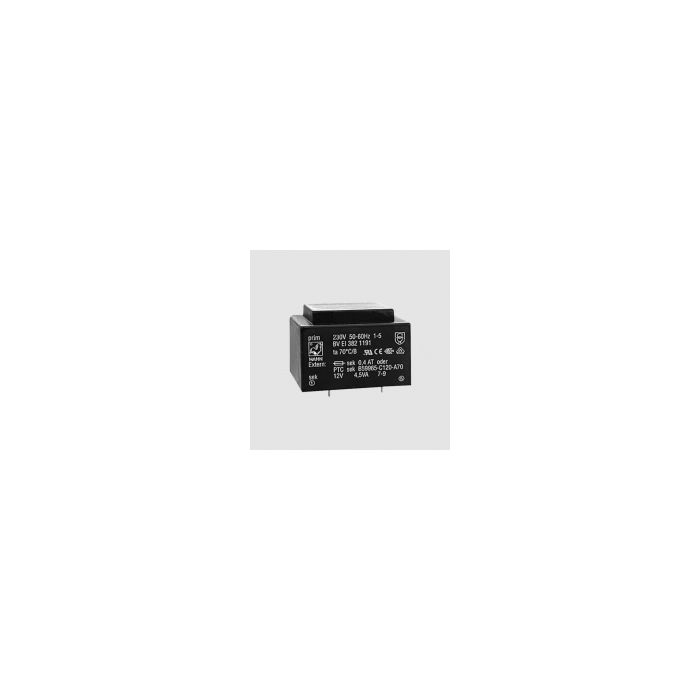

TRANSFORMATOR 4.5VA 2X9V 1X250MA
€ 6,75
€ 5,58
Artikelnummer
2090045M
- Artikelnummer2090045M
- MerkHAHN
- Aantal 5+ € 6,07 € 5,02
Features
Winding of double coated copper wire for better insulation, vacuum casted, two chambers
Connections for PCB use
Technical Specifications
Temperature Resistance Class: Ta 70/B
End Temperature in Standard Use: 120°C
Permissible Overtemperature2): 50K
Primary Voltage (50/60Hz): 230V AC
Power, Max. (Ta 70/B)1): 4,5VA
Test Voltage: 4kV/50Hz
No-Load Voltage (According to VDE 0570): <2 x UN sec
Dimensions: (lxBxH)41x35,1x28,1mm
Input: 230VAC
Output: 2x9VAC 2x250mA
Winding of double coated copper wire for better insulation, vacuum casted, two chambers
Connections for PCB use
Technical Specifications
Temperature Resistance Class: Ta 70/B
End Temperature in Standard Use: 120°C
Permissible Overtemperature2): 50K
Primary Voltage (50/60Hz): 230V AC
Power, Max. (Ta 70/B)1): 4,5VA
Test Voltage: 4kV/50Hz
No-Load Voltage (According to VDE 0570): <2 x UN sec
Dimensions: (lxBxH)41x35,1x28,1mm
Input: 230VAC
Output: 2x9VAC 2x250mA
