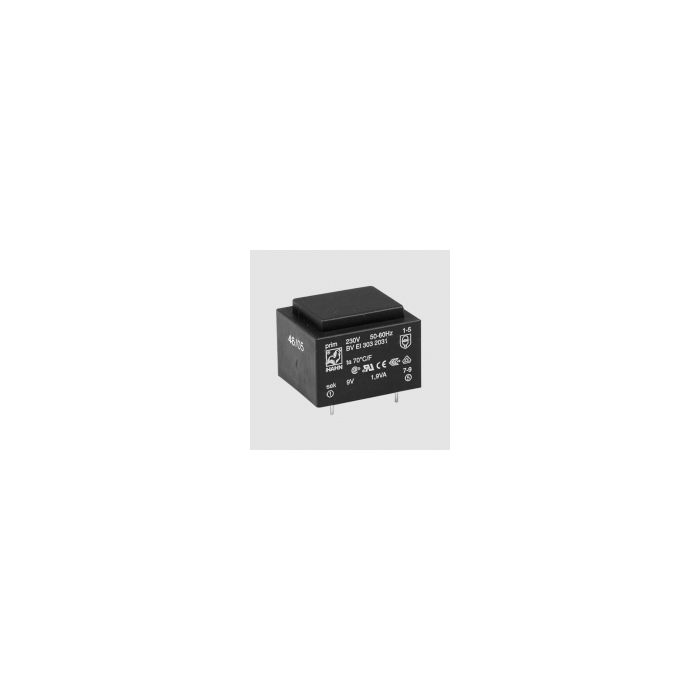

TRANSFORMATOR 1.9VA 2X9V 2X105MA
€ 4,95
€ 4,09
Artikelnummer
2090019M
- Artikelnummer2090019M
- MerkHAHN
- Aantal 5+ € 4,45 € 3,68
Features
Winding of double coated copper wire for better insulation, vacuum casted, two chambers
Connections for PCB use
Technical Specifications
Temperature Resistance Class1): Ta 70/F
End Temperature in Case of Short Circuit, Max2): 190°C
End Temperature in Standard Use:140°C
Permissible Overtemperature3): 70K
Primary Voltage (50/60Hz): 230V AC
Power, Max. (Ta 70/F)2): 1,9VA
Test Voltage: 4kV/50Hz
No-Load Voltage (According to VDE 0570): <2 x UN sec
Dimensions: (lxBxH)32,5x27,5x23,8mm
Input: 230VAC
Output: 2x9VAC 2x105mA
Winding of double coated copper wire for better insulation, vacuum casted, two chambers
Connections for PCB use
Technical Specifications
Temperature Resistance Class1): Ta 70/F
End Temperature in Case of Short Circuit, Max2): 190°C
End Temperature in Standard Use:140°C
Permissible Overtemperature3): 70K
Primary Voltage (50/60Hz): 230V AC
Power, Max. (Ta 70/F)2): 1,9VA
Test Voltage: 4kV/50Hz
No-Load Voltage (According to VDE 0570): <2 x UN sec
Dimensions: (lxBxH)32,5x27,5x23,8mm
Input: 230VAC
Output: 2x9VAC 2x105mA
