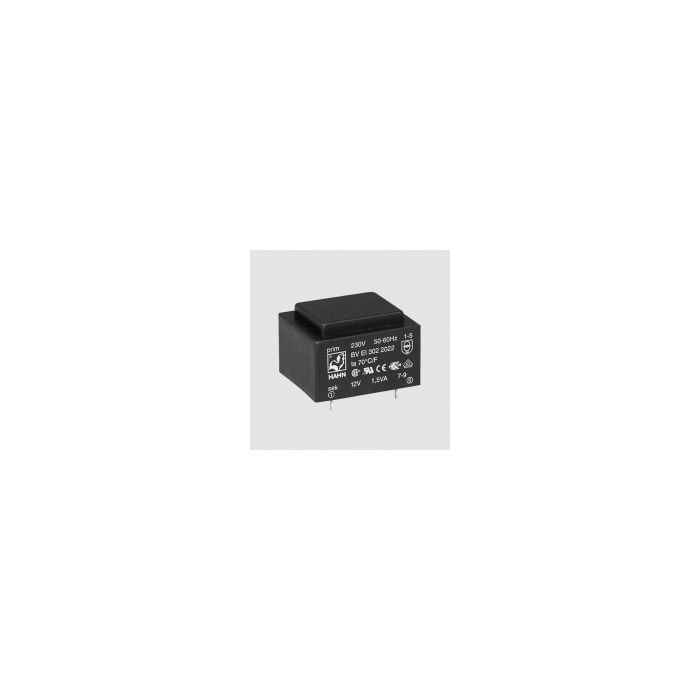

TRANSFORMATOR 1.5VA 2X9V 2X83MA
€ 4,65
€ 3,84
Artikelnummer
2090015M
- Artikelnummer2090015M
- MerkHAHN
- Aantal 5+ € 4,17 € 3,45
Features
Winding of double coated copper wire for better insulation, vacuum casted, two chambers
Connections for PCB use
Technical Specifications
Temperature Resistance Class1): Ta 70/F
End Temperature in Case of Short Circuit, Max2): 190°C
End Temperature in Standard Use: 140°C
Permissible Overtemperature3): 70K
Primary Voltage (50/60Hz): 230V AC
Power, Max. (Ta 70/F)2): 1,5VA
Test Voltage: 4kV/50Hz
No-Load Voltage (According to VDE 0570): <2 x UN sec
1,5VA 230V 2x9V 2x83mA
Winding of double coated copper wire for better insulation, vacuum casted, two chambers
Connections for PCB use
Technical Specifications
Temperature Resistance Class1): Ta 70/F
End Temperature in Case of Short Circuit, Max2): 190°C
End Temperature in Standard Use: 140°C
Permissible Overtemperature3): 70K
Primary Voltage (50/60Hz): 230V AC
Power, Max. (Ta 70/F)2): 1,5VA
Test Voltage: 4kV/50Hz
No-Load Voltage (According to VDE 0570): <2 x UN sec
1,5VA 230V 2x9V 2x83mA
