TRANSFORMATOR 0.50VA 2X9V 2X28MA
€ 3,78
€ 3,12
Artikelnummer
2090005M
- Artikelnummer2090005M
- MerkHAHN
- Aantal 5+ € 3,39 € 2,80

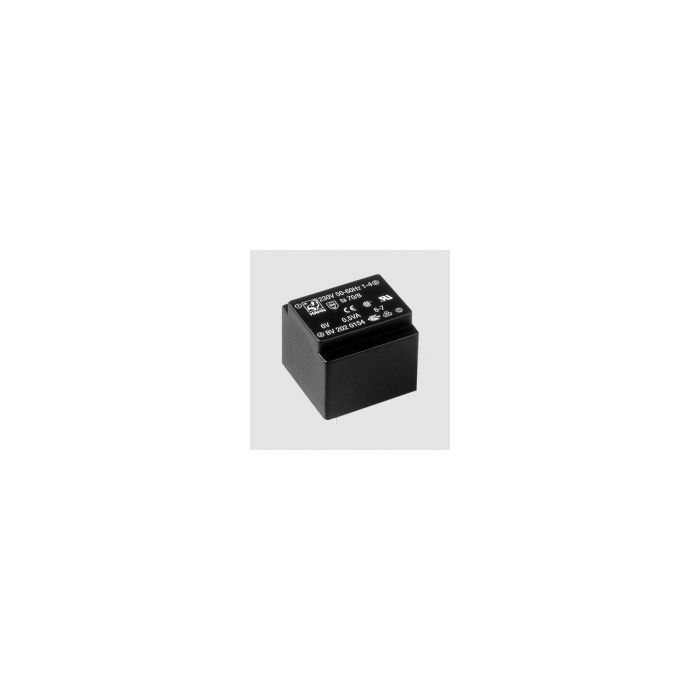

Transformer 0,5VA 230V 2x9V 2x28mA
Features
Winding of double coated copper wire for better insulation, vacuum casted, two chambers
Connections for PCB use
Technical Specifications
Temperature Resistance Class1): Ta 70/B
End Temperature in Case of Short Circuit, Max2): 175°C
End Temperature in Standard Use: 120°C
Permissible Overtemperature3): 50K
Primary Voltage (50/60Hz): 230V AC
Performance, Max. (Ta 70/B)2): 0,5VA
Test Voltage: 4kV/50Hz
No-Load Voltage (According to VDE 0570): <2 x UN sec
Features
Winding of double coated copper wire for better insulation, vacuum casted, two chambers
Connections for PCB use
Technical Specifications
Temperature Resistance Class1): Ta 70/B
End Temperature in Case of Short Circuit, Max2): 175°C
End Temperature in Standard Use: 120°C
Permissible Overtemperature3): 50K
Primary Voltage (50/60Hz): 230V AC
Performance, Max. (Ta 70/B)2): 0,5VA
Test Voltage: 4kV/50Hz
No-Load Voltage (According to VDE 0570): <2 x UN sec
