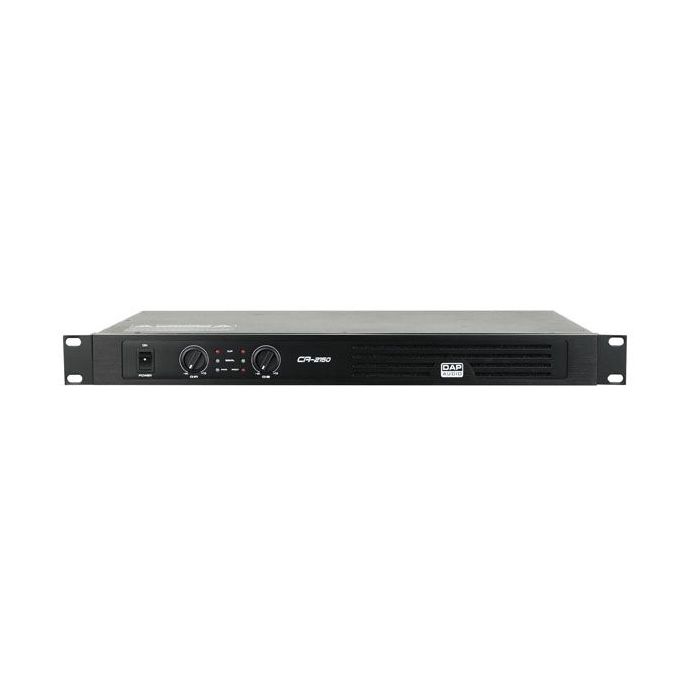

1U VERSTERKER DIGITAL CLASS-D 2X150W RMS 4OHM
€ 255,00
€ 210,74
Artikelnummer
CA2150
- ArtikelnummerCA2150
- MerkDAP AUDIO
- Aantal 2+ € 229,49 € 189,66
| Specifications | |
|---|---|
| Output Power | |
| Stereo 2Ohm | Not recommended |
| Stereo 4Ohm | 2x 150 Watt RMS |
| Stereo 8Ohm | 2x 90 Watt RMS |
| Bridge 2Ohm | Not Allowed |
| Bridge 4Ohm | 1x 275 Watt RMS |
| Bridge 8Ohm | 1x 190 Watt RMS |
| Frequency Response | 20Hz – 20KHz, +0/-1dB |
| THD | <0.1% |
| S/N rate | >96 dB A-weighted |
| Crosstalk | >70dB |
| Damping Factor | >180 |
| Gain | 28V |
| Input Sensitivity | 0,9-1,1V (+/-1dBv) |
| Input Impedance | 20kOhm balanced, 10kOhm unbalanced |
| Output Mode | Stereo / Bridged |
| Amp Technology | Class D |
| Power Supply | SMPS |
| Protection | Clip Limiter (Fixed) |
| Short Circuit | |
| Overheat | |
| Overload | |
| DC Voltage | |
| Soft Start | |
| Cooling | Forced-air by axial fan |
| Airflow | Front to side |
| Input Connectors | 3-pin XLR, TRS 6,3mm Jack |
| Output Connectors | Speakon, TRS 6,3mm Jack |
| Power Connector | IEC |
| Input Voltage | 210~240VAC… 50/60Hz |
| Power Consumption | 450W |
| Dimensions | 484x281x44mm |
| Installation depth | 278mm (excl. conn.) |
| Weight | 3,7Kg |
