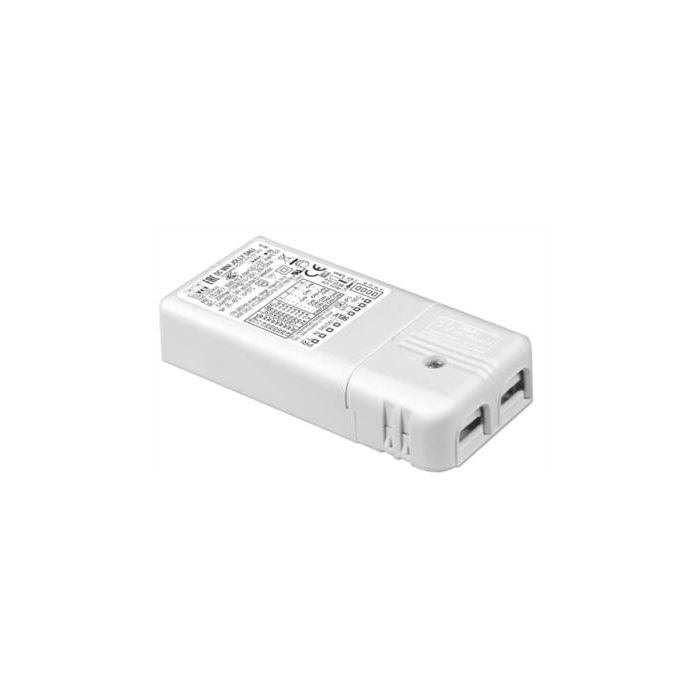

DC MINI JOLLY LED DRIVER 12-43VDC 250-700MA 20W 110,4X52X22MM DIMBAAR DALI

Features • Multipower driver supplied with dip-switch for the selection of the output current. • IP20 independent driver, for indoor use. • Class II protection against electric shock for direct or indirect contact. • Driver for built-in use (DC MINI JOLLY DALI BI). • It can be used for lighting equipment in protection class I and II (DC MINI JOLLY DALI BI). • IP00, creepage distances and clearances rely on the final application according to IEC/EN 60598-1 (DC MINI JOLLY DALI BI). • Active Power Factor Corrector. • Analogical input (NTC) for thermal sensor connection. • Current regulation ±5 % including temperature variations. • Input and output terminal blocks on the same side (wire cross-section up to 1,5 mm2 / AWG15). • Clamping screws on primary and secondary circuits for cables with diameter: PRI 5-8 mm / SEC 3-5 mm. • Protections: - against overheating and short circuits; - against mains voltage spikes; - against overloads. • Thermal protection = C.5.a.
