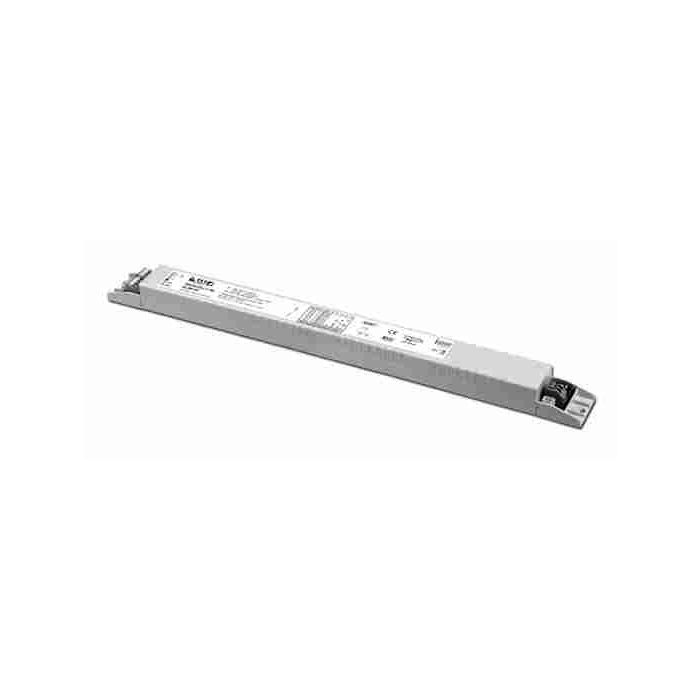

MAXI JOLLY 80 SLIM HV LED DRIVER 30-190VDC 200-410MA 75W 360X30X21MM

Direct current dimmable electronic drivers multivoltage-multicurrent for power LED and LED modules

Driver for built-in use.
• Multi-power driver supplied with dip-switch for
the selection of the output current.
• Active Power Factor Corrector.
• Stand-by power less than 0,3 W.
• Light regulation 0-100% by means of PUSH and
DALI function.
• Light regulation 0-100% by means of PUSH
function (mains voltage):
- a short push to turn on and off;
- a longer push to increase or decrease light
intensity;
- regulation automatically stops at minimum and
maximum values;
- for another on, regulation or off command,
release the push button and give the desired
command again.
• Maximum length of the cable, from push button
to last driver, must be max. 15 m. In case of
applications where the cable is longer than 15 m,
keep this separate from the mains cable.
• Possibility to use PUSH function to 4/5 drivers
without sync cable.
• ATTENTION: only use normally open push
buttons with no incorporated warning light.
• Features DALI dimming:
- memory function for sets or light groups;
- recall of stored functions;
- compatible with standard DALI interfaces.
• Current regulation ±5% including temperature
variations.
• Output is not isolated from the input.
• It can be used for lighting equipment in protection
class I and II.
• Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
• Thermal protection = C.5.a.
•Can be switched on and off on secondary
circuit for power LED.
• Analogical input for thermal sensor connection.
