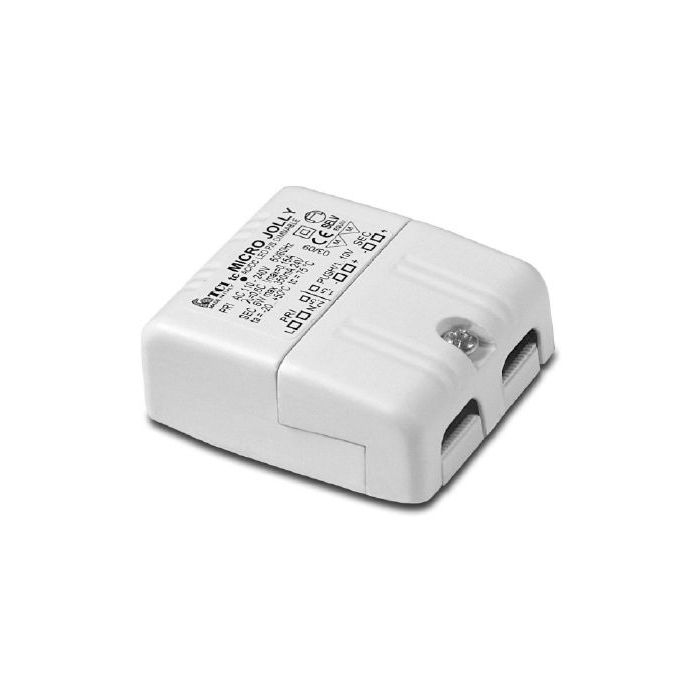

LED DRIVER 24VDC 350MA 6W 57X50X22MM PUSH DIMBAAR

IP20 independent driver, for indoor use.
• Light regulation 0-100% by means of PUSH
function (in low voltage) or interface 1...10 V.
• Selection of regulating mode (1...10 V and PUSH)
by means of jumper under the terminal cover.
• Light regulation 0-100% by means of PUSH
function (secondary, push button 24 V):
- a short push to turn on and off;
- a longer push to increase or decrease light intensity;
- regulation automatically stops at minimum and
maximum values;
- for another on, regulation or off command,
release the push button and give the desired
command again.
• Maximum length of the cable, from push button
to last driver, must be max. 15 m. In case of
applications where the cable is longer than 15 m,
keep this separate from the 100-240 V mains cable.
• ATTENTION: only use normally open push
buttons with no incorporated warning light.
• Class II protection against electric shock
following direct or indirect contact.
• Current regulation ±5% including temperature
variations.
• Supplied with terminal cover and clamping screws.
• Input and output terminals on the same side
terminal area: 2,5 mm2 primary; 1,5 mm2
secondary; 1,5 mm2 regulation.
• Clamping screws on primary and secondary
circuits for cables with diameter:
min. 3 mm - max. 8 mm.
• The driver can be secured by means of threaded
slots.
• Reduced compact size.
• Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
• Possibility of ignition and power off on the
secondary for current LED (power LED).
• Suitable for the supply of power LED
and LED modules.
