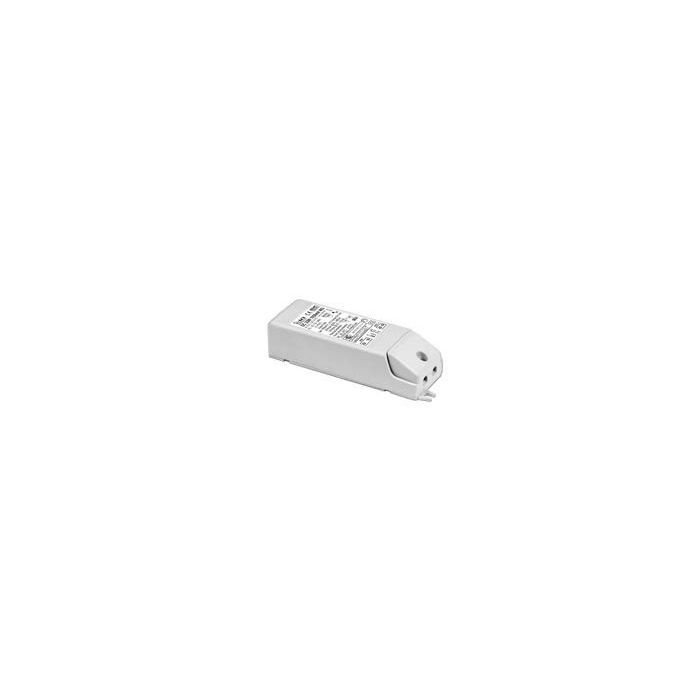

LED DRIVER 49VDC 350MA 17W 122X38X28MM
€ 23,95
€ 19,79
Artikelnummer
122246
- Artikelnummer122246
- MerkTCI
- Aantal 5+ € 21,55 € 17,81
Features
Double output impedance for use in household electrical
appliances.
Possibility of ignition and power off on the secondary for current
LED (power LED), only for WU S version.
IP20 independent driver, for indoor use.
Class II protection against electric shock for direct or indirect
contact.
Current regulation ±5% including temperature variations.
Supplied with terminal cover and cable retainer.
Input and output terminal blocks on the same side (wire
cross-section up to 2,5 mm2).
Single terminal block on primary and secondary circuits.
Clamping screws on primary and secondary circuits for cables
with diameter: min. 3 mm - max. 8 mm.
Driver can be secured with slot for screws.
Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
Cannot be switched on and off on secondary circuit
for power LED.
(4) Can be switched on and off on secondary circuit for power
