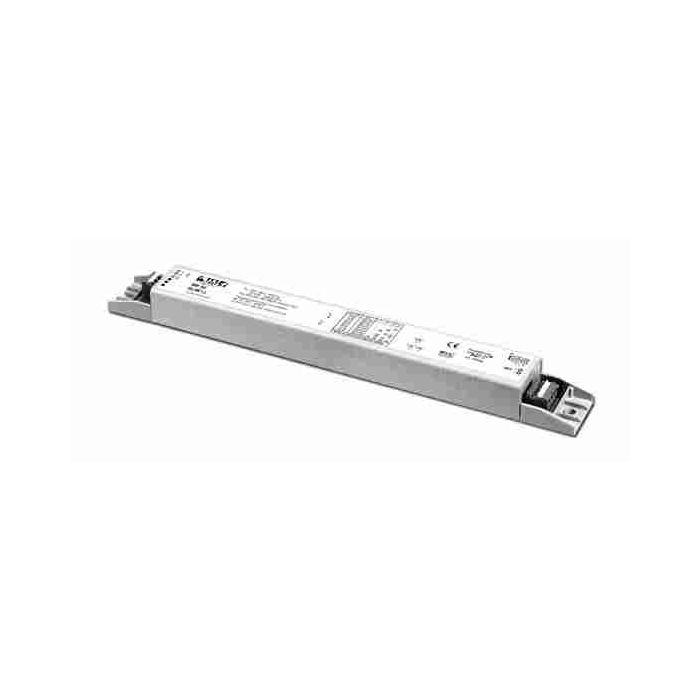

LED DRIVER 30-270VDC 200MA-350MA 80W 280X30X21M

Direct current electronic drivers multicurrent for power LED

• Alimentatore da incorporare.
• Multi-power driver supplied with dip-switch for
the selection of the output current.
• Active Power Factor Corrector.
• Current regulation ±5% including temperature
variations.
• It can be used for lighting equipment in protection
class I and II.
• Output is not isolated from the input.
• Input and output terminal blocks on opposite
sides (terminal area 2,5 mm2).
• Driver can be secured with slot for screws.
• Protections:
- short circuits;
- against mains voltage spikes.
• Thermal protection = C.5.a.
•Cannot be switched on and off on secondary
circuit for power LED.
