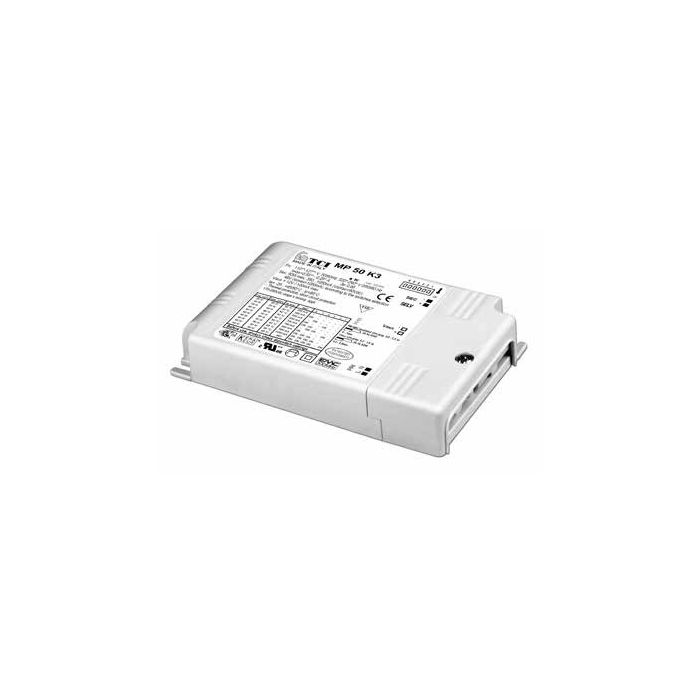

MP 50 K3 LED DRIVER 36-74VDC 350-1050MA 50W 124,5X79X22MM
€ 39,95
€ 33,02
Artikelnummer
122204
- Artikelnummer122204
- MerkTCI
- Aantal 5+ € 35,95 € 29,71
IP20 independent driver, for indoor use.
Multi-power driver supplied with dip-switch for
the selection of the output current.
Active Power Factor Corrector.
Class II protection against electric shock
following direct or indirect contact.
Current regulation ±5% including temperature
variations.
Input and output terminal blocks on the same
side (terminal area 2,5 mm2).
Clamping screws on primary and secondary
circuits for cables with diameter:
min. 3 mm - max. 8 mm.
Driver can be secured with slot for screws.
Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
Thermal protection = C.5.a.
Can be switched on and off on secondary
circuit for power LED.
Auxiliary output 12 V max. 50 mA.
Suitable for the supply of power LED
and LED modules
