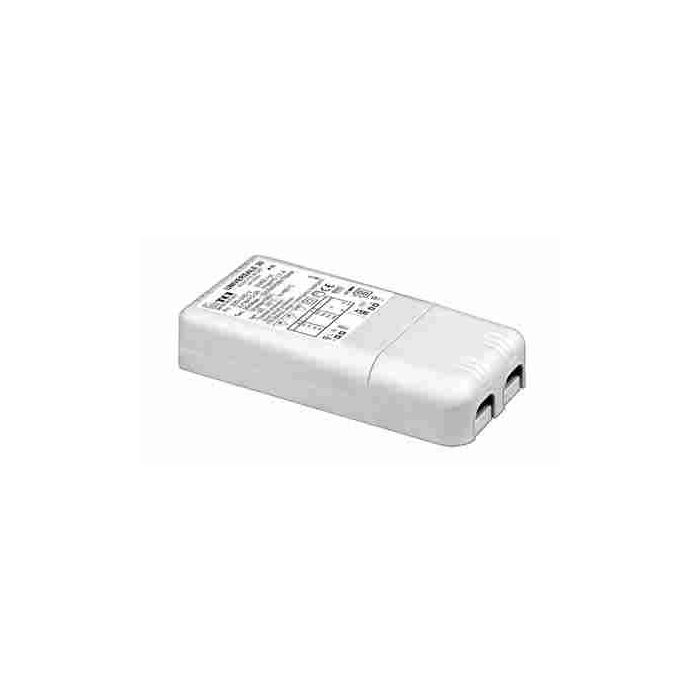

UNIVERSALE 20 LED DRIVER 36-57VDC 350-700MA 20W 108X52X22MM
€ 22,69
€ 18,75
Artikelnummer
122201
- Artikelnummer122201
- MerkTCI
- Aantal 5+ € 20,41 € 16,87
Features
IP20 independent driver, for indoor use.
Multi-power driver supplied with dip-switch for the selection of
the output current.
Active Power Factor Corrector.
Class II protection against electric shock following direct or
indirect contact.
Current regulation ±5% including temperature variations.
Supplied with terminal cover and cable retainer.
Input and output terminal blocks on the same side (max. wire
cross-section = 1,5 mm2).
Clamping screws on primary and secondary circuits for cables
with diameter: min. 3 mm - max. 8 mm.
Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
Thermal protection = C.5.a.
Can be switched on and off on secondary circuit for power LED
