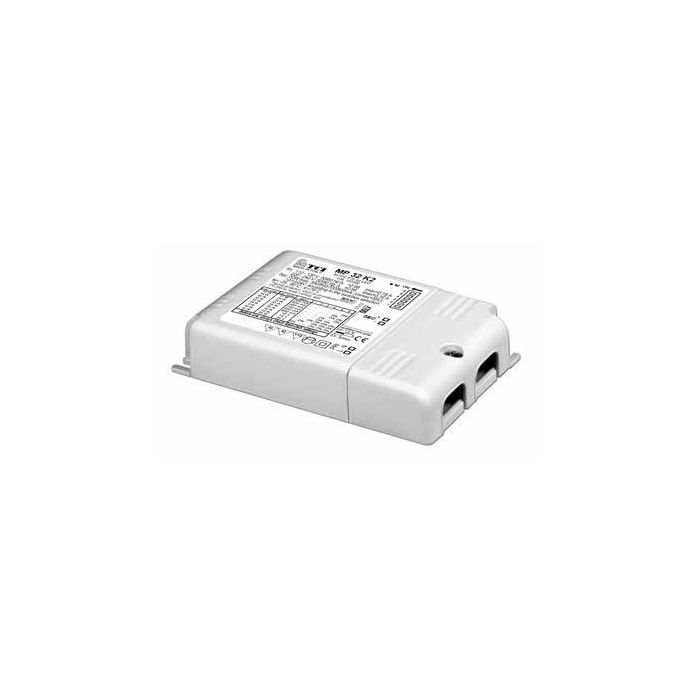

MP 32 K2 LED DRIVER 10-47VDC 350-900MA 32W 103X67X21MM
€ 36,51
€ 30,17
Artikelnummer
122200
- Artikelnummer122200
- MerkTCI
- Aantal 5+ € 32,85 € 27,15
IP20 independent driver, for indoor use.
Multi-power driver supplied with dip-switch for
the selection of the output current.
Active Power Factor Corrector.
Class II protection against electric shock
following direct or indirect contact.
Current regulation ±5% including temperature
variations.
Supplied with terminal cover and cable retainer.
Input and output terminal blocks on the same side
(max. wire cross-section = 1,5 mm2).
Clamping screws on primary and secondary
circuits for cables with diameter:
min. 3 mm - max. 8 mm.
Driver can be secured with slot for screws.
Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
Thermal protection = C.5.a.
Can be switched on and off on secondary
circuit for power LED.
