TRANSFORMATOR 3.0VA 1X12V 1X250MA
€ 4,76
€ 3,93
Artikelnummer
1120030M
- Artikelnummer1120030M
- MerkHAHN
- Aantal 5+ € 4,27 € 3,53

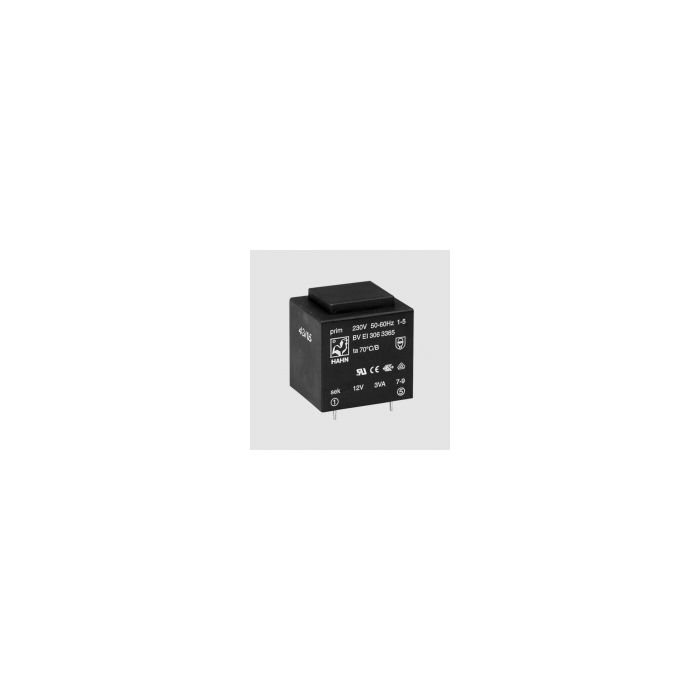

Transformer 3VA 230V 12V 250mA
Features
Winding of double coated copper wire for better insulation, vacuum casted, two chambers
Connections for PCB use
Technical Specifications
Temperature Resistance Class1): Ta 40/F
End Temperatur in Case of Short-Circuit, Max.2): 190°C
End Temperature in Standard Use: 140°C
Permissible Overtemperature3): 100K
Primary Voltage (50/60Hz): 230V AC
Power, Max. (Ta 40/F)2): 3VA
Test Voltage: 4kV/50Hz
No-Load Voltage (According to VDE 0570): <2 x UN sec.
Features
Winding of double coated copper wire for better insulation, vacuum casted, two chambers
Connections for PCB use
Technical Specifications
Temperature Resistance Class1): Ta 40/F
End Temperatur in Case of Short-Circuit, Max.2): 190°C
End Temperature in Standard Use: 140°C
Permissible Overtemperature3): 100K
Primary Voltage (50/60Hz): 230V AC
Power, Max. (Ta 40/F)2): 3VA
Test Voltage: 4kV/50Hz
No-Load Voltage (According to VDE 0570): <2 x UN sec.
