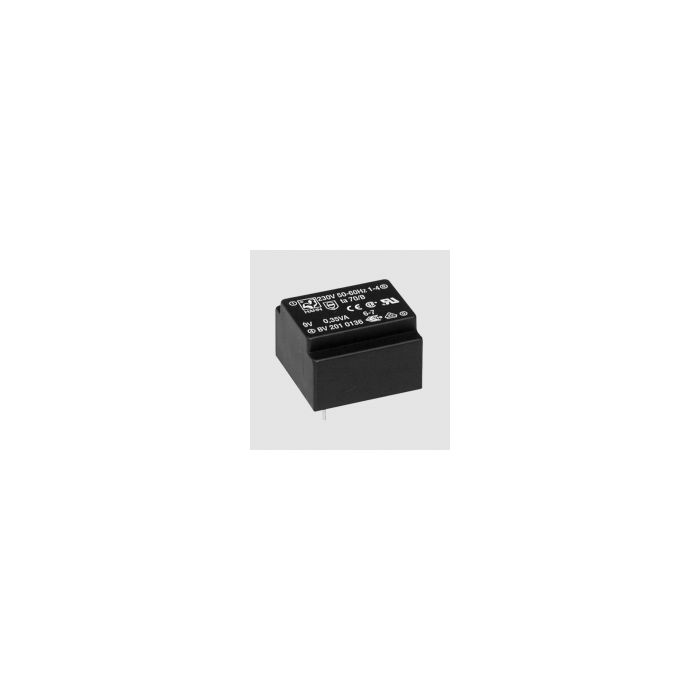

TRANSFORMATOR 0.35VA 1X9V 1X39MA
€ 4,38
€ 3,62
Artikelnummer
1090003M
- Artikelnummer1090003M
- MerkHAHN
- Aantal 5+ € 3,93 € 3,25
Transformer 0,35VA 230V 9V 39mA
Features
Winding of double coated copper wire for better insulation, vacuum casted, two chambers
Connections for PCB use
Technical Specifications
Temperature Class1): Ta 70/B
End Temperature in Case of Short Circuit, Max 2): 175°C
End Temperature in Standard Use: 120°C
Permissible Overtemperature3): 50K
Primary Voltage (50/60Hz): 230V AC
Power, Max. (Ta 70/B)2): 0,35VA
Insulation Voltage: 4kV/50Hz
No-Load Voltage (According to VDE 0570): <2 x UN sec
Features
Winding of double coated copper wire for better insulation, vacuum casted, two chambers
Connections for PCB use
Technical Specifications
Temperature Class1): Ta 70/B
End Temperature in Case of Short Circuit, Max 2): 175°C
End Temperature in Standard Use: 120°C
Permissible Overtemperature3): 50K
Primary Voltage (50/60Hz): 230V AC
Power, Max. (Ta 70/B)2): 0,35VA
Insulation Voltage: 4kV/50Hz
No-Load Voltage (According to VDE 0570): <2 x UN sec
