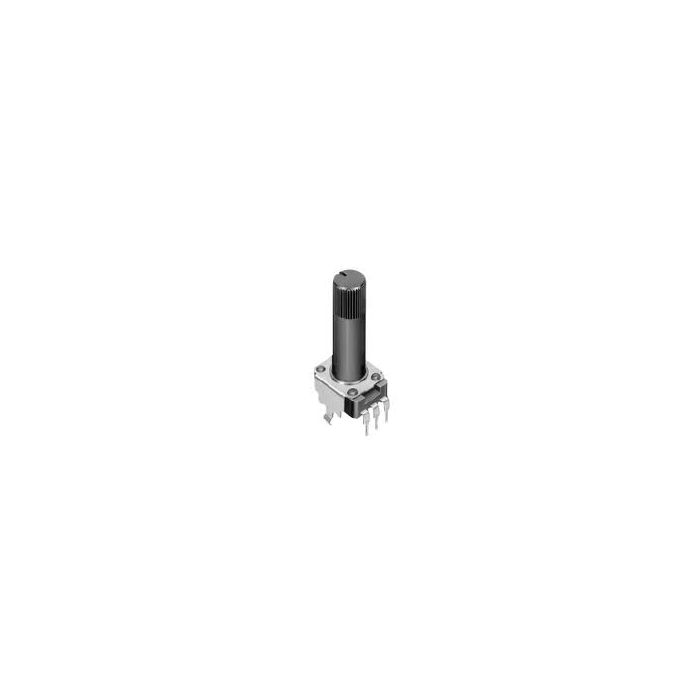

POTMETER MONO LIN 6MM 10K 15MM VERTIKAAL

Technical Specifications

Rated Power
single: 0,05W
dual: 0,03W
Operating Voltage, Max.
single: 50VAC / 20VDC
dual: 50V AC
Insulation Voltage (1Min): 250V AC
Insulation Resistance: ³100MW / 250V DC

Resistance Tolerance
single: ±20%
dual: ±30%

Rotation Angle, Mechanical
RK09K_: 280° ±5°
RK09D_: 300° ±5°
dual: 280° ±5°
Operating Torque: 1...8mN*m

Lifetime
single: 5x103 Operations
dual: 10x103 Operations
Temperature Range: -10°C...+70°C

Type: mono
Rotation Angle: 280±5°
Center Detent: without
R [KW]: 10
Resistance Taper: 1B (lin.)

Shaft: Plastic, Ø6mm
Length: 6mm
