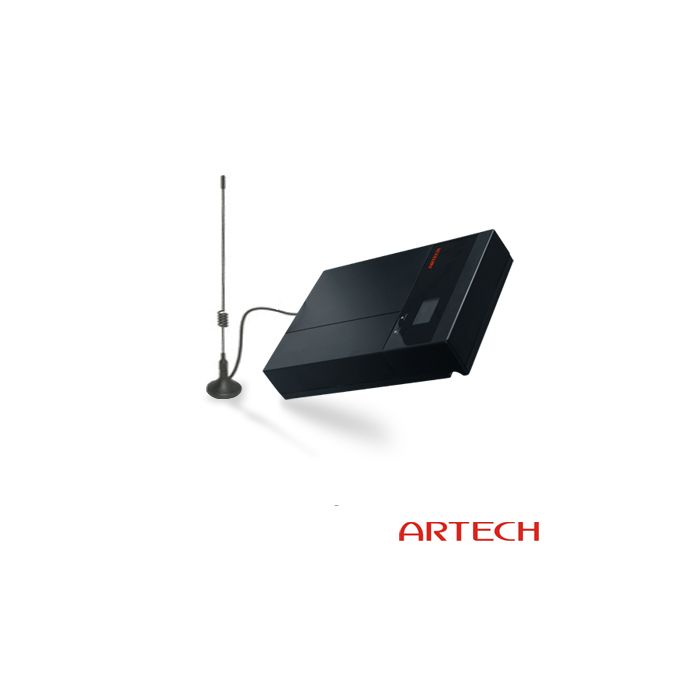

GSM GATEWAY

GSM gateway provides the mobility of fixed equipment with easy setup process for site office or on automobile where the users need to share limited lines. To re-route the specific call through GSM system for least cost routing application. You can program the routing at the site or remotely. Make it possible for user to use the existing equipment to share make/received call from GSM system. And use the available features of the existing equipment. You can use optionally GSM system only if PSTN line is not available or use both at the same time. Automated process for picking up calls, cut off and built-in battery charging capability with only through the connection of the socket from GX450 to your mobile phone. To re-route the specific call through GSM system for least cost routing application. User can remotely program the routing parameter or at the place of installation. Metal housing for durability and easy installation on site. More than 10 possible model of Ericsson mobile telephone works with the system.

GSM900/GSM1800
Connect GSM Network to PBX
Call Routing Through GSM or PSTN

Technical Specification:

Air Interface:
GSM Phase I/GSM Phase II + compatible
GSM Frequency Ranges: GSM900/GSM1800
Rx / Tx Frequency: 935~960MHz / 890~915MHZ
Rx / Tx Frequency: 1805~1880MHz / 1710~1785MHZ
RF Transmit Power: 2W(900 MHz), 1W(1800 MHz)
RF Sensitivity: <-100 dBm

Electricity Power Supply:
Input: AC100~240V/60Hz; Output: DC24V/1.5A

Connectors:
RJ11 Interface jack for telephone
RJ11 Interface jack for PSTN
SMA antenna connector
DC power input jack

Antenna:
2dbi Omni Antenna; High-gain antenna and cable as optional

Working Environment:
Operating temperature range: 0 to 50
Working Voltage: Input mark value+24VDC
Working Current: 1A
Consumption: 12W
Operating Humidity: 10% to 90%
Dimensions: 224mm(H)x160mm(W)45mm(D)
Weight: 495g
