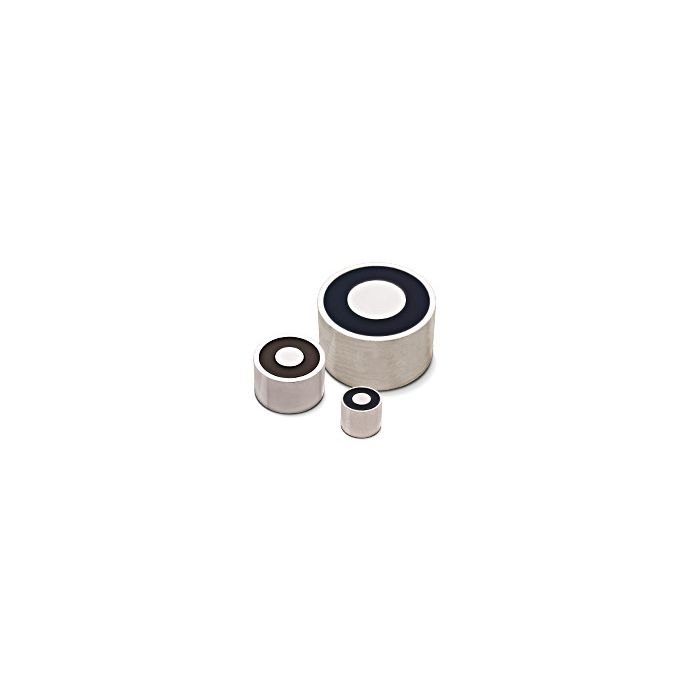

SOLENOID HOUDMAGNEET RVS 24VDC/0.135A 14KG
€ 39,95
€ 33,02
Artikelnummer
MSM2520-24
- ArtikelnummerMSM2520-24
- MerkRED-MAGNETICS
- Aantal 5+ € 35,95 € 29,71
| Features |
| • Holding magnets • Completely encapsulated stainless steel housing • Under side with threaded holes • Min. 200mm connecting lead • Internal thread M4 |
 |
| Technical Specifications |
| Part Nr. | UN |
IN |
PN |
FH |
ØxL | Weight |
| ITS-MSM_ | [V DC] | [A] | [W] | [N] | [mm] | [g] |
| 2520-12-VA | 12 | 0,27 | 3,2 | 140 | 25x20 | 60 |
| 2520-24-VA | 24 | 0,13 | 3,2 | 140 | 25x20 | 60 |
| 3222-12-VA | 12 | 0,30 | 3,6 | 240 | 32x22 | 110 |
| 3222-24-VA | 24 | 0,15 | 3,6 | 240 | 32x22 | 110 |
| UN = Voltage, IN = Current, PN = Power at 100%ED, FH = Typical Force | ||||||
|
||||||
| Coil Data |
| Part Nr. | EDrel |
EDmax. |
Pmax. |
| ITS-MSM_ | [%] | [sec] | [W] |
| 2520_-VA | 100 | infinite | 3,2 |
| 3222_-VA | 100 | infinite | 3,6 |
| EDRel = Duty Cycle, EDMax. = Duty Cycle, Max., PMax. = Capaticy, Max. (20°C) | |||
|
|||
| Dimensions |
| Part Nr. | a | b | c | d | e |
| ITS-MSM_ | [mm] | ||||
| 2520_-VA | 25 | 20 | M4 | 6 | 200 |
| 3222_-VA | 32 | 22 | M4 | 6 | 200 |
