HEADPHONE AMPLIFIER ONE CHANNEL 4 VOUDIG
€ 33,50
€ 27,69
Artikelnummer
SC11
- ArtikelnummerSC11
- MerkDAP AUDIO
- Aantal 5+ € 30,15 € 24,92

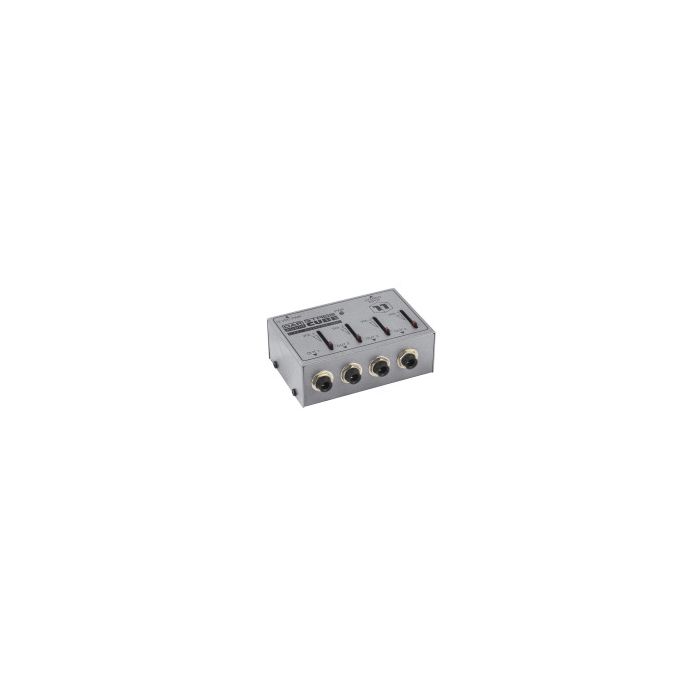

Headphone amplifier one channel
The SC-11 is for expanding or generating headphone channels. It has a 1/4\" stereo input, 4 volume controls, 4: 1/4\" stereo output jacks and it is powered by an AC adapter (included). The SC-11 has a 20 Hz - 20 kHz response, small size, and is very easy to use.
Input Impedance: 100 kOhm (unbalanced)
Max. Input Level: +14 dBV
Input Connectors: Stereo 1/4\" TRS phone
Outputs: (4) 1/4\" Stereo 1/4\"
Max. Gain: 20 dB/Channel
S/N Ratio: > 90 dB
THD: < 0.008%
IMD (SMPTE) < 0.008%
Dimensions: 113 x 73 x 40 mm (LxWxH)
Weight: 0,336 kg
DownloadsProduct-Datasheet (PDF)
ManualsD1511_MANUAL_D_V1.pdfD1511_MANUAL_GB_V1.pdfD1511_MANUAL_NL_V1.pdf
Product documentsD1511_CE-EMC_Directive.pdfD1511_CE-LVD_Directive.pdf
The SC-11 is for expanding or generating headphone channels. It has a 1/4\" stereo input, 4 volume controls, 4: 1/4\" stereo output jacks and it is powered by an AC adapter (included). The SC-11 has a 20 Hz - 20 kHz response, small size, and is very easy to use.
Input Impedance: 100 kOhm (unbalanced)
Max. Input Level: +14 dBV
Input Connectors: Stereo 1/4\" TRS phone
Outputs: (4) 1/4\" Stereo 1/4\"
Max. Gain: 20 dB/Channel
S/N Ratio: > 90 dB
THD: < 0.008%
IMD (SMPTE) < 0.008%
Dimensions: 113 x 73 x 40 mm (LxWxH)
Weight: 0,336 kg
DownloadsProduct-Datasheet (PDF)
ManualsD1511_MANUAL_D_V1.pdfD1511_MANUAL_GB_V1.pdfD1511_MANUAL_NL_V1.pdf
Product documentsD1511_CE-EMC_Directive.pdfD1511_CE-LVD_Directive.pdf
