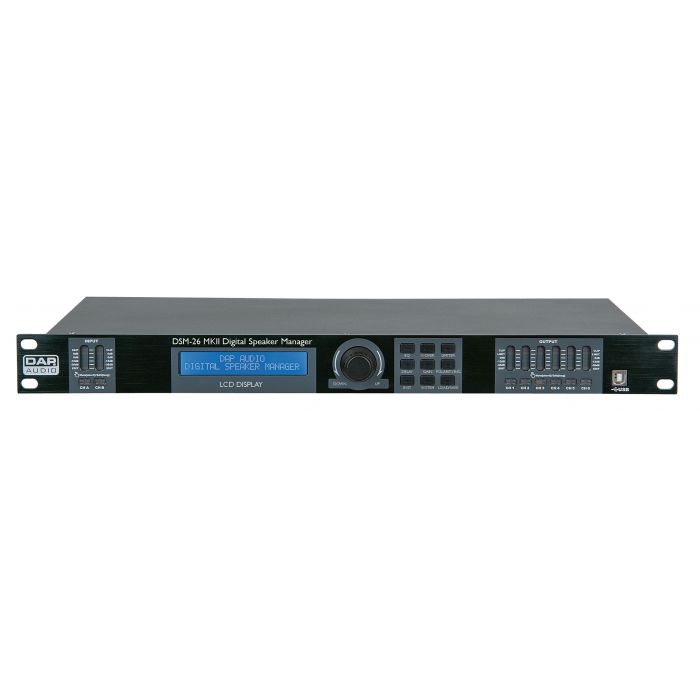

DIGITAL SPEAKER MANAGER

DSM-26 MKII
Digital Speaker Manager
• 96 Khz Sample rate, 115 dB dynamic range
• S/N Ratio better than 110dB dBu
• USB at front with included user-friendly software
• 30 User presets
• Connect multiple units with RS485 (use optional interface D2071)

The DSM-26 MKII is a 2 in- and 6 output speaker manager that can be used for a wide range of applications. It has all the dynamics you need to tune many different types of speaker set-ups. At the front it has an USB connection port which enables you to program the DSM-26 MKII with the included software. The RS485 interface gives you the possibility to connect and program multiple units at once. It has a powerful chipset that makes it possible to use all filter slopes until 48 dB per octave and all equalizer, delay sections without running out of memory or calculations. The DSM-26 MKII is suitable for professional PA systems, line arrays and audio installations, as well as sound distribution networks. The MKII version has been improved on the following points:

- Adjustable noise gate on inputs
- System separate function lock
- Improved software GUI and functions
- Improved software resolution
- Upgraded, more stable, DSP

Specifications
DSP: 96 kHz, 32 bits floating point DSP, 192 kHz
AD/DA Converters: 24 bitsInput gain: -80dB - +12dB, step @ 0,1 dB
Input Impedance: Balanced 20kΩ
Output gain: -80dB - +12dB, step @ 0,1 dB
Output Impedance: Balanced 100Ω
CMRR: >70dB@1kHz
Input range: ≤ ±25 dBu
Frequency response: 20Hz – 20kHz ±0,5dB
S/NR: >110dB
THD: <0,01% @output=0dBu/1kHz
Crosstalk: >80dB@1kHz

6-Bands Input EQ
Bandwidth: 0,05 to 3 octaves in 0,05 octave steps
EQ gain control: -20 dB to +20 dB
EQ frequencies: 19,7Hz to 20kHz in 1/24 octave steps

Delay
Input delay: Channel independent from 0 to 1000 mS
Output delay: Channel independent from 0 to 1000 mS

6-Bands Output EQ
Type: Low Shelf, High Shelf and Parametric
Lo/High shelf slope: 6 dB/12 dB
EQ Bandwidth: 0,05 to 3 octaves in 0,05 steps.
EQ gain control: -20 dB to +20 dB on al EQ types.
EQ frequencies: 19,7 Hz to 20 kHz in 1/24 octave steps

Crossovers
Types: Linkwitz Riley, Bessel and Butterworth
Slopes: 12, 18, 24, 30, 36, 42, 48 dB/octave
Frequencies: 19,7 Hz to 20 kHz in 1/24 octave steps
Limiter
Threshold points: -40 to +20 dBu in 0,5 dB steps
Attack times: 0,3 mS to 200 mS
Attack time steps: 0,1 mS steps from 0,3 to 1 mS, 1 mS steps from 1 to 100 mS
Release times: 50 ms – 5000 ms

Miscellaneous:
Memory Storage: 30 User presets
Display: 2x 24 dot matrix characters
Latency: 2,61 mS
USB Interface: 1x Front
RS-485 interface: 2x Back
Power Supply: 110/220 Volt AC, 50/60 Hz
Power Consumption: 25 Watt
Fuse: F0,5A/250V
Dimensions: 482 x 44 x 192 mm(WxHxD)
Net weight: 3,4 kg
Accessories: Power-cable, USB cable, Software
RS485 interface not included, order code D2071
