PRESIDENT BARRY II ASC AM/FM

€ 119,95 € 99,13

Artikelnummer

BARRYII

27Mhz transceiver 40 kanalen AM/FM 4W

Toon meer Toon minder

ArtikelnummerBARRYII
MerkPRESIDENT

Aantal 3+ € 113,95 € 94,17

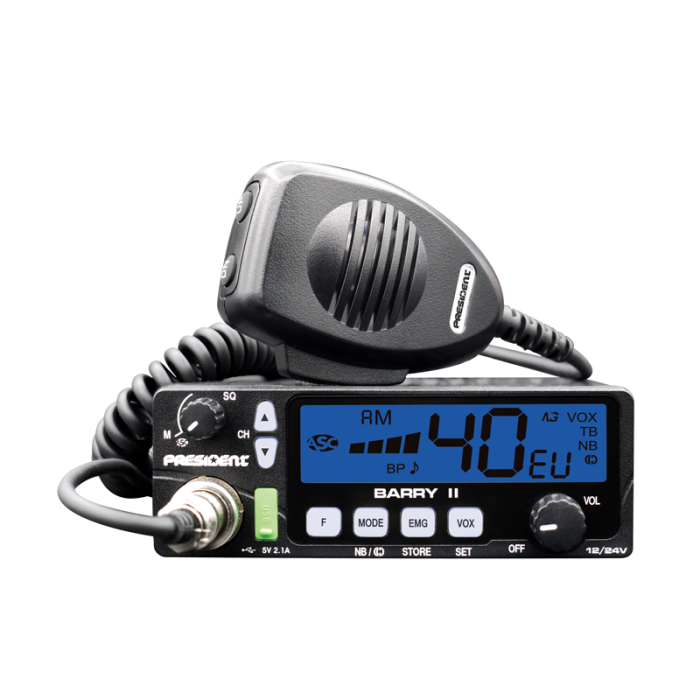

De Barry II AM/FM is de opvolger van de Barry en beschikt nu over USB-ingang en een VOX-functie. Deze dubbelspanning (12/24V) CB is President's basismodel radio met een groot helder display en werkt op alle Europese banden.

Frequentiebereik: 26,965 - 27,405 MHz

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 4 Watt
Channels: 40 AM / FM
Display type: LCD display
Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
VOX Function: Yes
USB: Yes
Noise blanker: Yes
Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
Emergency channel: Yes
External speaker socket: Yes
External PA socket: Yes
S-meter: Yes
TOT (time out timer): Yes
External VOX socket: Yes
Roger Beep: Yes

Electrical data

Voltage: 13,8 Volt / 24 Volt /

Transmitter

Audio frequency response: 300 Hz - 3 kHz
Microphone sensitivity: 7 mV
Frequency allowance: ± 200 Hz
Transmission interference: inferior to 4 nW (- 54 dBm)
Emitted power in the adjacent channel: inferior a 20 μW
Modulated signal distortion: 2 %
Drain: 13.2 Volt: 1.7 A / 26.4 Volt: 0.85 A

Receiver

AM sensitivity: 0,5 µV - 113 dBm
FM sensitivity: 0,35 µV - 116 dBm
Frequency response: 300 Hz - 3 kHz
Adjacent channel selectivity: 60 dB
Maximum audio power: 2.5 Watt
Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
Frequency image rejection rate: 60 dB
Intermediate image rejection rate: 70 dB
Drain: 13.2 Volt: 160 - 420 mA / 26.4 Volt: 100 - 250 mA

Mechanical data

Length: 180 mm
Height: 45 mm
Width: 125 mm
Weight: 900 gram
Antenna connector: UHF (PL) female (SO-239)
Mike connector: 6 pin connector

Inside the box

Transceiver: 1 pcs
Microphone: 1 pcs
Fixing screws: 1 set
Mounting bracket: 1 pcs
Power lead: 1 pcs
User Manual: English, Spanish, French, Polish
