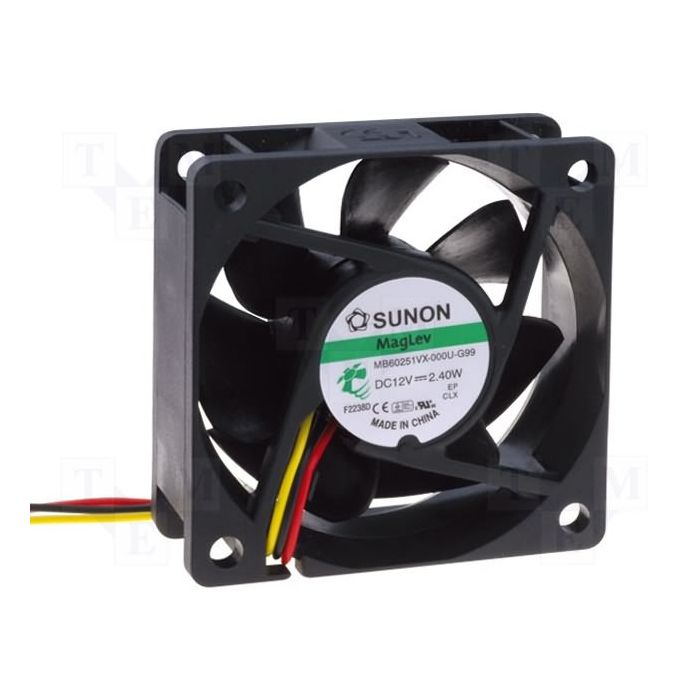

VENTILATOR 12V/DC VAPOLAGER 60X60X25MM 45,8M3/H 36,5DB
€ 6,47
€ 5,35
Artikelnummer
F1206025VF
- ArtikelnummerF1206025VF
- MerkSUNON
- Aantal 5+ € 5,82 € 4,81
SpecificationFan type DC
Fan dimensions 60x60x25mm
Bearing type Vapo
Fans efficiency 45.87 (}15%)m3/h
Noise level 36.5dBA
Supply voltage 12V DC
Power consumption 2.4W
Operating voltage 4.5 13.8V
Signal output F type
Rotational rate/speed 5200 (}15%)rpm
Weight 57g
Rated current 0.2A
Current and power consumption tolerance }15%
Min. insulation resistance 500M¶
Fan material thermoplastic
Enclosure material thermoplastic
Insulation class A
Operating temperature -10...70C
Static pressure 7.87mm H2O
Leads 3 leads
Flammability rating UL94V-0
Fan motor brushless DC motor
Cable length 300mm
Wire size 26AWG
Additional functions Autorestart
Fan dimensions 60x60x25mm
Bearing type Vapo
Fans efficiency 45.87 (}15%)m3/h
Noise level 36.5dBA
Supply voltage 12V DC
Power consumption 2.4W
Operating voltage 4.5 13.8V
Signal output F type
Rotational rate/speed 5200 (}15%)rpm
Weight 57g
Rated current 0.2A
Current and power consumption tolerance }15%
Min. insulation resistance 500M¶
Fan material thermoplastic
Enclosure material thermoplastic
Insulation class A
Operating temperature -10...70C
Static pressure 7.87mm H2O
Leads 3 leads
Flammability rating UL94V-0
Fan motor brushless DC motor
Cable length 300mm
Wire size 26AWG
Additional functions Autorestart
